    首頁 > > Teldor- Outdoor Microduct Loose-Tube Fiber Cable 室外光纖電纜

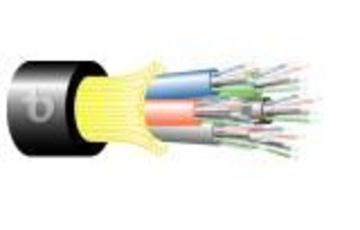

    Teldor-44726D1 Outdoor FTX 2-72 Fiber Microduct Loose-Tube Cable for Blown Installation 72C室外光纖電纜
    看原圖
    		TELDOR-44726D1

    商品編號: Teldor-44726D1

    Teldor-44726D1 Outdoor FTX 2-72 Fiber Microduct Loose-Tube Cable for Blown Installation 72C室外光纖電纜


    FTX 2-72 Fiber Microduct Loose-Tube Cable for Blown Installation

    Part Number:
    44726D1
    　
    Applications: Blown Installations, Campus Backbone, Centralized Cabling
    General Construction: Optimized for blown installation, the cable contains 2-72 color coded optical fibers, each with a 250um outer diameter. Groups of 12 optical fibers are contained in a buffer or loose tube filled with waterblocking gel. The  loose tubes (and  fillers if required) are stranded  around a dielectric central strength member to enable mid-sheath entry. The cable is protected with a black HDPE outer jacket.
    Outer Jacket Material: HDPE
    Outer Diameter: 5.8 mm nom.
    Weight: 30 kg/km
    Design & Materials
    Buffer Material: PBT
    Color code: Per TIA/EIA 598-C
    Central Strength Member: FRP
    Cabling: SZ
    Number of tubes: 1 - 6
    Number of fibers: 2 - 72
    Waterblocking: Dry Waterblocking
    Rip-Cord: Yes
    Outer Jacket Color: Black
    Marking: Teldor Standard
    Standards
    Standards: IEC 60794
    Performance
    Max. Tensile Strength - Short Term: 700 N
    Max. Tensile Strength - Long Term: 130 N
    Max. Crush Resistance: 100 N/cm
    Min. Bend Radius for Installation: 116 mm
    Min. Bend Radius for Operation: 58 mm
    Repeated Bending: 100 cycles
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -30 °C
    Max. Installation Temperature: +60 °C
    Min. Installation Temperature: -30 °C
    Max. Storage Temperature: +70 °C
    Min. Storage Temperature: -40 °C
    Waterblocking: Yes
