    Teldor-95B73FM06B Armored Fiber Optic 6 Fiber Outdoor Breakout Cable 鎧裝緊式室外光纖電纜
    看原圖
    		TELDOR-95B73FM06B

    商品編號: Teldor-95B73FM06B

    Teldor-95B73FM06B Armored Fiber Optic 6 Fiber Outdoor Breakout Cable 鎧裝緊式室外光纖電纜

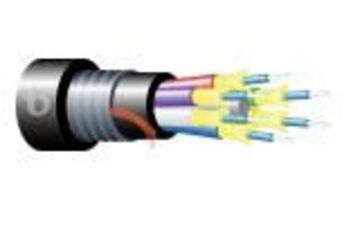

    TELDOR Armored Fiber Optic 6 Fiber Outdoor Breakout Cable

    Part Number:
    95B73FM06B
    　
    Applications: Direct Burial Campus Backbone, General purpose armored Outdoor, Outdoor Plant Duct Installation
    General Construction: The optical fiber with a 0.9 mm buffer, is protected by dielectric strength yarns and jacketed. These 6 color-coded 2.1 mm minicables are stranded, reinforced by aramid strength yarns and encased within a inner jacket. Water blocking materials are applied inside. The inner cable is wrapped with a waterblocking tape, armored and outer jacketed.
    Outer Jacket Material: PE
    Outer Diameter: 13.3 mm nom.
    Weight: 175 kg/km
    Design & Materials
    Buffer Material: FR-LSZH
    Buffer Diameter: 900 µm
    Central Strength Member: FRP
    Inner Jacket Material: FR-PVC
    Armoring: Corrugated Steel
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: IEC 60794
    Performance
    Max. Tensile Strength - Short Term: 2700 N
    Max. Tensile Strength - Long Term: 1600 N
    Max. Crush Resistance: 800 N/cm
    Min. Bend Radius for Installation: 266 mm
    Min. Bend Radius for Operation: 266 mm
    Max. Operating Temperature: +75 °C
    Min. Operating Temperature: –40 °C
    Max. Storage Temperature: +75 °C
    Min. Storage Temperature: –40 °C
    UV resistance: Yes
    Waterblocking: Yes
