TELDOR-95A075M06B

商品編號: Teldor-95A075M06B

Teldor- 95A075M06B 50/125 MM Fiber Optic 6 Fiber Tactical MTD Cable 6C多模軍用光纖電纜

TELDOR Fiber Optic 6 Fiber Tactical MTD Cable

Part Number:	95A075M06B Jacket Color and the Teldor P/N

Applications:	Direct termination, Military/Tactical, Rugged environments

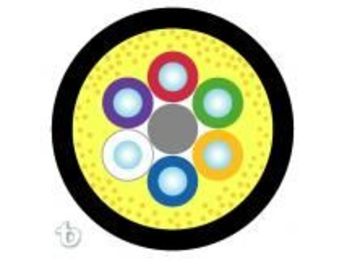

General Construction:	The cable includes 6 multimode graded index 50/125 micrometers optical fibers each with a 0.9 mm color coded Halogen Free buffer stranded around a filler. All cables are reinforced by aramid strength yarns, protected by waterblocking materials and jacketed with a ruggedized black UV-resistant Polyurethane
Outer Jacket Material:	PU
Outer Diameter:	6.1 mm nom.
Weight:	31 kg/km

Design & Materials

Standards

Standards:

IEC 60794

Performance

Max. Tensile Strength - Short Term:	1800 N
Max. Tensile Strength - Long Term:	1100 N
Impact Resistance:	2.2 N•m
Max. Crush Resistance:	800 N/cm
Min. Bend Radius for Installation:	60 mm
Min. Bend Radius for Operation:	30 mm
Repeated Bending:	10,000 cycles
Max. Operating Temperature:	+85 °C
Min. Operating Temperature:	-60 °C
Max. Storage Temperature:	+85 °C
Min. Storage Temperature:	-60 °C
UV resistance:	Yes
Waterblocking:	Yes
