    Teldor-95A576M04B 62.5/125 MM Fiber Optic 4 Fiber Tactical MTD Cable 4C多模Tactical光纖電纜
    看原圖
    		TELDOR-95A576M04B

    商品編號: Teldor-95A576M04B

    Teldor-95A576M04B 62.5/125 MM Fiber Optic 4 Fiber Tactical MTD Cable 4C多模Tactical光纖電纜


    TELDOR Fiber Optic 4 Fiber Tactical MTD Cable

    Part Number:
    95A576M04B
    　
    Applications: Direct termination, Military/Tactical, Rugged environments
    General Construction:

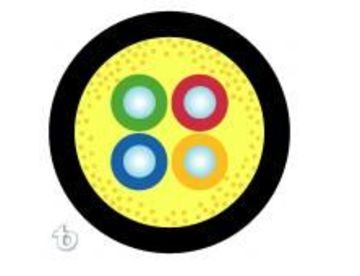

    The cable contains 4 graded index multimode 62.5 um optical fibers each with a 0.9 mm color coded Halogen Free tightbuffer. All cables are reinforced and protected by waterblocking aramid strength yarns and jacketed with a ruggedized black UV-resistant Polyurethane
    Outer Jacket Material: PU
    Outer Diameter: 6.0 mm nom.
    Weight: 31 kg/km
    Design & Materials
    Buffer Material: Polyester Elastomer
    Buffer Diameter: 900 µm
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: IEC 60794
    Performance
    Max. Tensile Strength - Short Term: 2700 N
    Max. Tensile Strength - Long Term: 1600 N
    Impact Resistance: 2.2 N•m
    Max. Crush Resistance: 800 N/cm
    Min. Bend Radius for Installation: 60 mm
    Min. Bend Radius for Operation: 30 mm
    Repeated Bending: 10,000 cycles
    Max. Operating Temperature: +85 °C
    Min. Operating Temperature: -60 °C
    Max. Storage Temperature: +85 °C
    Min. Storage Temperature: -60 °C
    UV resistance: Yes
    Waterblocking: Yes
