    Teldor-95A77FM12B TELDOR Fiber Optic 12 Fiber Tactical MTD Cable 12C多模Tactical光纖電纜
    看原圖
    		TELDOR-95A77FM12B

    商品編號: Teldor-95A77FM12B

    Teldor-95A77FM12B TELDOR Fiber Optic 12 Fiber Tactical MTD Cable 12C多模Tactical光纖電纜


    TELDOR Fiber Optic 2 Fiber Tactical Breakout Cable

    Part Number:
    95A77FM02B
    　
    Applications: Direct termination, Military/Tactical, Rugged environments
    General Construction: The cable contains 2 optical fibers each with a 0.9 mm Halogen Free buffer. Each fiber is reinforced by waterblocking aramid strength yarns and protected by a ruggedized color coded minicable. The 2 minicables and 2 fillers are stranded, reinforced and protected by strength elements, and jacketed with a ruggedized black UV-resistant Polyurethane compound.
    Outer Jacket Material: PU
    Outer Diameter: 7.0 mm nom.
    Weight: 42 kg/km

    TELDOR Fiber Optic 12 Fiber Tactical MTD Cable

    Part Number:
    95A77FM12B
    　
    Applications: Direct termination, Military/Tactical, Rugged environments

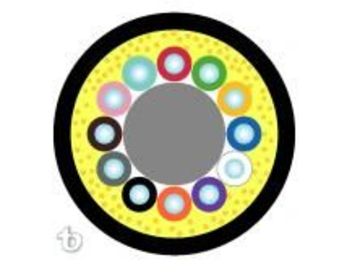

    General Construction:
    12 optical fibers each with a 0.9 mm color coded Halogen Free buffer stranded around a central strength member. All cables are reinforced and protected by waterblocking aramid strength yarns and jacketed with a ruggedized black UV-resistant Polyurethane
    Outer Jacket Material: PU
    Outer Diameter: 8.0 mm nom.
    Weight: 58 kg/km
    Design & Materials
    Buffer Material: Polyester Elastomer
    Buffer Diameter: 900 µm
    Central Strength Member: FRP
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: IEC 60794
    Performance
    Max. Tensile Strength - Short Term: 2700 N
    Max. Tensile Strength - Long Term: 1620 N
    Impact Resistance: 2.2 N•m
    Max. Crush Resistance: 800 N/cm
    Min. Bend Radius for Installation: 64 mm
    Min. Bend Radius for Operation: 64 mm
    Repeated Bending: 10,000 cycles
    Max. Operating Temperature: +85 °C
    Min. Operating Temperature: -60 °C
    Max. Storage Temperature: +85 °C
    Min. Storage Temperature: -60 °C
    UV resistance: Yes
    Waterblocking: Yes

    　
    Design & Materials
    Buffer Material: Polyester Elastomer
    Buffer Diameter: 900 µm
    Outer Jacket Color: Black
    Marking: Per request
    Standards
    Standards: IEC 60794
    Performance
    Max. Tensile Strength - Short Term: 2500 N
    Max. Tensile Strength - Long Term: 1500 N
    Impact Resistance: 2.2 N•m
    Max. Crush Resistance: 800 N/cm
    Min. Bend Radius for Installation: 70 mm
    Min. Bend Radius for Operation: 35 mm
    Repeated Bending: 10,000 cycles
    Max. Operating Temperature: +85 °C
    Min. Operating Temperature: -55 °C
    Max. Storage Temperature: +85 °C
    Min. Storage Temperature: -55 °C
