TELDOR-95B55FA02C

商品編號: Teldor-95B55FA02C

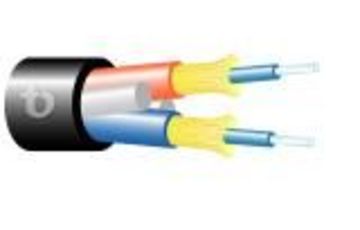

Teldor-95B55FA02C Fiber Optic 2 Fiber Breakout Indoor/Outdoor PVC Cable 2芯緊式室內外光纖電纜

TELDOR Fiber Optic 2 Fiber Breakout Indoor/Outdoor PVC Cable

Part Number:	95B55FA02C Jacket Color and the Teldor P/N

Applications:	Centralized Cabling, Short and Medium distance distribution and trunking, General purpose indoor/outdoor LAN, Distribution to Riser cabling
General Construction:	the cable consist of 2 optical fibers each with a 0.9 mm PVC buffer, protected by waterblocking aramid strength yarns and jacketed with a flame retardant PVC compound. These color-coded 2.1 mm minicables are wrapped with a waterblocking binder and overall jacketed with a UV resistant flame retardant PVC compound. 2 fillers are used to maintain cable geometry.
Outer Jacket Material:	FR-PVC
Outer Diameter:	7.5 mm nom.
Weight:	55 kg/km

Design & Materials

Standards

Standards:	IEC 60794
Flamability Rating:	IEC 60332-3

Performance

Max. Tensile Strength - Short Term:	1500 N
Max. Tensile Strength - Long Term:	900 N
Max. Crush Resistance:	220 N/cm
Min. Bend Radius for Installation:	150 mm
Min. Bend Radius for Operation:	75 mm
Max. Operating Temperature:	+75 °C
Min. Operating Temperature:	–25 °C
Max. Storage Temperature:	+75 °C
Min. Storage Temperature:	–25 °C
UV resistance:	Yes
Waterblocking:	Yes

KEYWORDS: Teldor-95B55FA02C Fiber Optic 2 Fiber Breakout Indoor/Outdoor PVC Cable 2芯緊式室內外光纖電纜, IEC 60794
