TELDOR-95B71FM06C

商品編號: Teldor-95B71FM06C

Teldor-95B71FM06C Armored Fiber Optic 6 Fiber Indoor/Outdoor Breakout Cable 6芯緊式鎧裝室內外光纖電纜

TELDOR Armored Fiber Optic 6 Fiber Indoor/Outdoor Breakout Cable

Part Number:	95B71FM06C Jacket Color and the Teldor P/N

Applications:	General purpose armored Indoor/Outdoor, Direct Burial Campus Backbone, Outdoor Plant Duct Installation, Campus Backbone

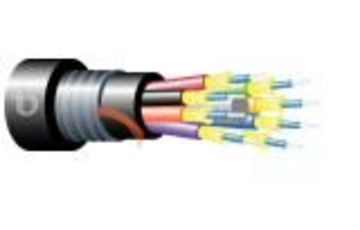

General Construction:	6 optical fibers each with a 0.9 mm buffer, are protected by dielectric strength yarns and jacketed. These color-coded 2.1 mm minicables are stranded around a dielectric central strength member and overall jacketed. The cable core is covered with a waterblocking tape, armored and outer jacketed.
Outer Jacket Material:	PE
Outer Diameter:	13.4 mm nom.
Weight:	180 kg/km

Design & Materials

Standards

Standards:

IEC 60794

Performance

Max. Tensile Strength - Short Term:	1500 N
Max. Tensile Strength - Long Term:	900 N
Max. Crush Resistance:	800 N/cm
Min. Bend Radius for Installation:	268 mm
Min. Bend Radius for Operation:	268 mm
Max. Operating Temperature:	+75 °C
Min. Operating Temperature:	–40 °C
Max. Storage Temperature:	+75 °C
Min. Storage Temperature:	–40 °C
UV resistance:	Yes
Waterblocking:	Yes
