TELDOR-95B71FM08C

商品編號: Teldor-95B71FM08C

Teldor-95B71FM08C Armored Fiber Optic 8 Fiber Indoor/Outdoor Breakout Cable 8C室內外鎧裝光纖電纜

TELDOR Armored Fiber Optic 8 Fiber Indoor/Outdoor Breakout Cable

Part Number:	95B71FM08C Jacket Color and the Teldor P/N

Applications:	General purpose armored Indoor/Outdoor, Direct Burial Campus Backbone, Outdoor Plant Duct Installation, Campus Backbone

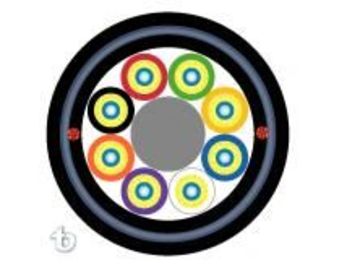

General Construction:	8 optical fibers each with a 0.9 mm buffer, are protected by dielectric strength yarns and jacketed. These color-coded 2.1 mm minicables are stranded around a dielectric central strength member and overall jacketed. This cable core is then covered with a waterblocking tape, armored and outer jacketed.
Outer Jacket Material:	PE
Outer Diameter:	15.5 mm nom.
Weight:	240 kg/km

Design & Materials

Standards

Standards:

IEC 60794

Performance

Max. Tensile Strength - Short Term:	1500 N
Max. Tensile Strength - Long Term:	900 N
Max. Crush Resistance:	800 N/cm
Min. Bend Radius for Installation:	310 mm
Min. Bend Radius for Operation:	310 mm
Max. Operating Temperature:	+75 °C
Min. Operating Temperature:	–40 °C
Max. Storage Temperature:	+75 °C
Min. Storage Temperature:	–40 °C
UV resistance:	Yes
Waterblocking:	Yes
