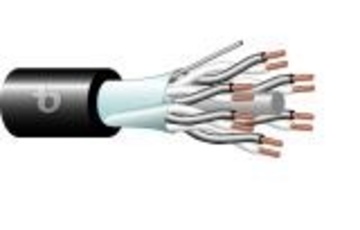

    Teldor-9001070101 6x2x20/19 S/FTP LOW CAPACITANCE 600 V PU Jacket低電容隔離控制線
    看原圖
    		TELDOR-9001070101

    商品編號: Teldor-9001070101

    Teldor-9001070101 6x2x20/19 S/FTP LOW CAPACITANCE 600 V PU Jacket低電容隔離控制線

    Part Number:
    9001070101
    　
    General Construction: 6 aluminum-foil shielded low capacitance pairs are cabled together with a filler members, overall tinned copper shielded and jacketed with a UV resistant PU compound.
    Outer Jacket Material: PU
    Outer Diameter: 13.2 mm nom.
    Weight: 180 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 20 AWG
    Conductor Construction: 19x0.20 mm
    Insulation Material: Solid LDPE
    Insulation O.D.: 1.80 mm nom.
    Conductor Color Code: Black X White + Numbered tape
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Conductor unit lay-up: Pairs
    Overall Shield Design: Braid
    Overall Shield Material: Tinned-copper braid
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 75 % nom.
    Overall Drain-wire Material: Tinned Copper
    Outer Jacket Thickness: 1.0 mm nom.
    Outer Jacket Color: Black
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Performance
    Electrical Properties:
    Pair capacitance: 84 pF/m
    Resistance unbalance (per pair): 2% max.

    Max. DC Resistance : 35 Ω/km@20°C
    Capacitance: 84 pF/m
    Inductance: 0.5 µH/m
    Min. Insulation Resistance : 2000 MΩ•km
    Min. Bend Radius: 85 mm
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
