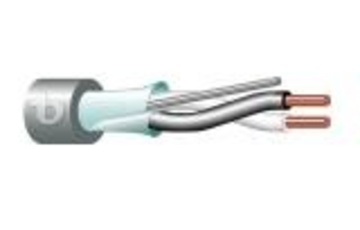

    Teldor-9FE3DBVxxx Low Capacitance 3X18/19 AWG F/UTP PVC低電容隔離線
    看原圖
    		TELDOR-9FE3DBVXXX

    商品編號: Teldor-9FE3DBVxxx

    Teldor-9FE3DBVxxx Low Capacitance 3X18/19 AWG F/UTP PVC低電容隔離線


    Low Capacitance 3X18/19 AWG F/UTP PVC

    Part Number:
    9FE3DBVxxx
    　
    General Construction: The cable contains 3 PE insulated stranded conductors, cabled together, wraooed with polyester tape and overall shielded with a polyester-aluminum foil. The shielded core is  jacketed with a soft FR PVC compound
    Outer Jacket Material: FR-PVC
    Outer Diameter: 6.4 mm nom.
    Weight: 68 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 18 AWG
    Conductor Construction: 19x0.25 mm
    Insulation Material: PE
    Insulation O.D.: 2.1 mm nom.
    Conductor Color Code: Red, Black, White
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 20 AWG
    Overall Drain-wire Construction: Stranded
    Total number of wires: 3
    Outer Jacket Color: Light Gray - or per request
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Impedance: 68 (pair) Ω
    Max. DC Resistance : 23 Ω/km@20°C
    Capacitance: 80 (pair) pF/m
    Capacitance Pair to Shield: 150 (single) pF/m
    Inductance: 0.57 µH/m
    Dielectric Strength: 1500 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Voltage Rating: 300 V
    Min. Bend Radius: 50 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -30 °C
