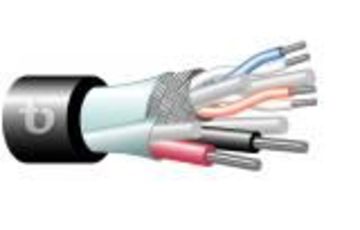

    Teldor-9FF9FDZxxx RS-422/485 120 Ω 2X2X22 AWG SF/UTP + 2x16 AWG OFS
    看原圖
    		TELDOR-9FF9FDZXXX

    商品編號: Teldor-9FF9FDZxxx

    Teldor-9FF9FDZxxx RS-422/485 120 Ω 2X2X22 AWG SF/UTP + 2x16 AWG OFS

    RS-422/485 120 Ω 2X2X22 AWG SF/UTP + 2x16 AWG OFS

    Part Number:
    9FF9FDZxxx
    　
    Applications: Field bus on the process level, RS-485, Data transmission, RS-422, Indoor/outdoor installation
    General Construction:

    The cable contains a core of two twisted pairs overall  SF/UTP shielded,  two 16 AWG insulated conductors, all cabled with a drain-wire and shielded by an aluminum-foil tape. The foiled core is jacketed with low temperature UV resistant FR-PVC compound.
    　
    Outer Jacket Material: FR-PVC
    Outer Diameter: 10.9 mm nom.
    Weight: 110 kg/km
    Design & Materials
    Detailed Construction:
    Power conductors:
    Color code:     black X red
    OD: 2.0 mm nom.

    RS485/422 Core:
    Shield:     SF/UTP
    Conductors data - see below
    　
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: PO
    Insulation O.D.: 1.6 mm nom.
    Color code: Per IEC 60189-2
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Stranded
    Drain-wire 1 size: 22 AWG
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: nom. 65 % nom.
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 22 AWG
    Overall Drain-wire Construction: Solid
    Total number of wires: 4x22 AWG + 2x16 AWG
    Outer Jacket Thickness: 1.5 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , UL 1581 VW-1, UL CMG, IEC 60331-1
    Performance
    Electrical Properties:
    Power conductors:
    DC resistance:     17 Ω/km, @ 20 DegC


    　
    Impedance: 120 Ω
    Coupling Attenuation: Type I
    Max. DC Resistance : 59.0 Ω/km@20°C
    Max. Resistance Unbalance: 3 %
    Attenuation:

    Attenuation dB/100m

    Frequency KHz

    0.6

    100

    0.9

    200

    1.4

    500

    1.9

    1000

    5.4

    10000
    Capacitance: 45 pF/m
    Capacitance Unbalance pair to Shield: 2 pF/m
    Velocity of Propagation: 70 % nom.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Voltage Rating: 250 V
    Min. Bend Radius: 100 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -45 °C
    UV resistance: Yes
