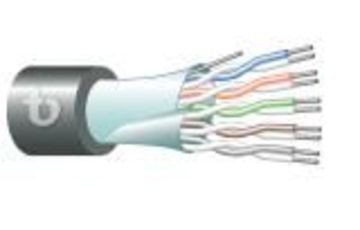

    Teldor-9FF9H5Vxxx 5x2x26/7 SF/UTP Multipairs 100 Ω Signal Cable
    看原圖
    		TELDOR-9FF9H5VXXX

    商品編號: Teldor-9FF9H5Vxxx
    Teldor-9FF9H5Vxxx 5x2x26/7 SF/UTP Multipairs 100 Ω Signal Cable

    5x2x26/7 SF/UTP Multipairs 100 Ω Signal Cable

    Part Number:
    9FF9H5Vxxx
    Applications: High Noise Environments, Industrial communication, RS-422, RS-232
    General Construction: 5 PVC insulated twisted pairs, cabled together, overall polyester-aluninum foil and tinned copper braid shielded, overall jacketed with UV resistant FR-PVC compound.
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 6.9 mm nom.
    Weight: 57 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 26 AWG
    Conductor Size: 7x0.16 mm
    Insulation Material: PVC
    Insulation O.D.: 1.0 mm nom.
    Conductor Color Code: White X Yellow, Black X Violet, Red X Blue, Orange X Green, Brown X Grey
    Conductor unit lay-up: Pairs
    Drain-wire 1 Material: Tinned Copper
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Braid Material: Tinned Copper
    Braid Coverage: 92 % nom.
    Outer Diameter: 6.7 mm min.
    Outer Diameter: 7.1 mm max.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , UL 1581 VW-1, UL 1581 FT-1, UL 1685
    Performance
    Impedance: 100 Ω
    Max. DC Resistance : 147 Ω/km@20°C
    Inductance: 0.58 (pair) µH/m
    Velocity of Propagation: 56 % nom.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Insulation Resistance : 800 MΩ•km
    Max. Operating Temperature: +80 °C
    Min. Operating Temperature: -30 °C
    UV resistance: Yes
