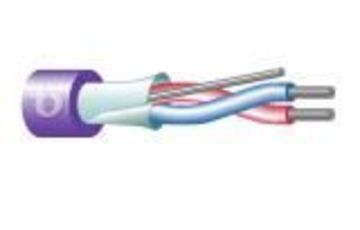

    Teldor-9FS8E2Mxxx EIB quad 2X2X0.8 F/UTP MB armor PE
    看原圖
    		TELDOR-9FS8E2MXXX

    商品編號: Teldor-9FS8E2Mxxx

    Teldor-9FS8E2Mxxx EIB quad 2X2X0.8 F/UTP MB armor PE

    EIB quad 2X2X0.8 F/UTP MB armor PE

    Part Number:
    9FS8E2Mxxx
    　
    Applications: Outdoor, Industrial communication, Data transmission
    General Construction: EIB cable contains four 0.8/1.53 mm conductors, cables in a quad form, overall shielded by aluminum foil and drain wire, F/UTP. The screened core is jacketed with UV resistant FR-PVC compound. An aluminum MB armor and outer UV resistant PE jacket makes the cable suitable for outdoor applications.
    　
    Outer Jacket Material: PE
    Outer Diameter: 10.2 mm nom.
    Weight: 95 kg/km
    Design & Materials
    Detailed Construction:
    Internal cable type: Teldor P/N 9FS8E2Vxxx
    Armor: 200 mic aluminum MB
    Outer jacket: UV resistant PE, colored black.


    The data listed below defines the internal cable performance.
    　
    Conductor Material: Bare Copper
    Conductor Size: 20 AWG
    Conductor Size: 0.8 mm
    Conductor Construction: Solid
    Insulation Material: PO
    Insulation O.D.: 1.53 mm nom.
    Insulation O.D.: 0.062 in.
    Conductor Color Code: black, red, white, yellow.
    Conductor unit lay-up: Quads
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 22 AWG
    Overall Drain-wire size: 0.61 mm
    Overall Drain-wire Construction: Solid
    Armoring: Aluminum Foil
    Total number of wires: 4
    Rip-Cord: Yes
    Moisture Barrier: Yes
    Outer Jacket Color: Black - or per request
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Performance
    Impedance: 100 Ω
    Coupling Attenuation: Type II
    Max. DC Resistance : 35 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Capacitance: 100 pF/m
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Insulation Resistance : 5 GΩ•km
    Min. Bend Radius: 120 mm
    Max. Operating Temperature: +65 °C
    Min. Operating Temperature: -35 °C
    UV resistance: Yes
