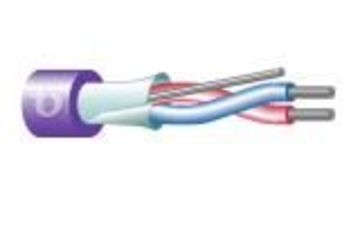

    Teldor-9FS8F1Zxxx BUS-DOR LonWork 1X2X0.64 120 Ω F/UTP cable FR-LSZH IEC 60332-3
    看原圖
    		TELDOR-9FS8F1ZXXX

    商品編號: Teldor-9FS8F1Zxxx

    Teldor-9FS8F1Zxxx BUS-DOR LonWork 1X2X0.64 120 Ω F/UTP cable FR-LSZH IEC 60332-3


    BUS-DOR LonWork 1X2X0.64 120 Ω F/UTP cable FR-LSZH IEC 60332-3

    Part Number:
    9FS8F1Zxxx
    Applications: Industrial communication, LonWorks BUS applications
    General Construction: The cable contains one Foil-shielded Twisted Pair, cabled together with a drain-wire and covered with a heavy duty jacket
    Outer Jacket Material: FR-LSZH
    Outer Diameter: 4.5 mm nom.
    Weight: 23 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 22 AWG
    Conductor Size: 0.64 mm
    Conductor Construction: Solid
    Insulation Material: PO
    Insulation O.D.: 1.56 mm nom.
    Conductor Color Code: Blue x White/Blue
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Stranded
    Drain-wire 1 size: 24 AWG
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Total number of wires: 2
    Outer Jacket Thickness: 0.6 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Flamability Rating: IEC 60332-3
    Performance
    Electrical Properties:
    DC loop resistance:    110.0 W/Km max. @ 20
    Impedance: 100 Ω
    Attenuation:

    2.0 dB/100m @ 1 MHz max.

    3.6 dB/100m @ 4 MHz max

    7.0 dB/100m @ 16 MHz max.

    7.8 dB/100m @ 20 Mhz max
    Capacitance: 44 pF/m
    Velocity of Propagation: 80 % nom.
    Min. Bend Radius: 50 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
