    Teldor-4T00170xxx RS-485/422 (2x2x26 AWG U/FTP + 2x16 AWG) OBS 工業用工作站用線
    看原圖
    		TELDOR-4T00170XXX

    商品編號: Teldor-4T00170xxx

    Teldor-4T00170xxx RS-485/422 (2x2x26 AWG U/FTP + 2x16 AWG) OBS 工業用工作站用線


    RS-485/422 (2x2x26 AWG U/FTP + 2x16 AWG) OBS

    Part Number:
    4T00170xxx
    　
    Applications: Outdoor, RS-485, RS-422, Indoor/outdoor installation, Fixed or portable installations

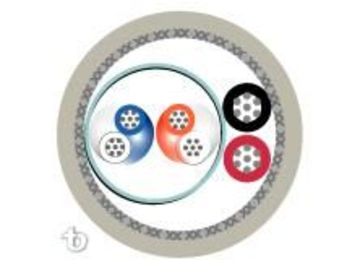

    General Construction: The cable contains two 26 AWG aluminum-foil shielded twisted pairs, two 16 AWG insulated conductors, all cabled together with filler elements and overall shielded with tinned copper braid and jacketed with UV resistant  FR-PVC compoubd.

    　
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 6.5 mm nom.
    Weight: 68 kg/km
    Design & Materials
    Detailed Construction:

    Function quantity Element DC resistance
    　    		 Color Code
    RS-485/422 2 2x26 AWG FTP 145
    　
    white X blue,
    white X green
    SIGNAL 2 16 AWG 16
    　    		 red, black

    The specifications listed bellow, refer to the RS-485/422 shielded section of the cable.
    　

    Conductor Material: Bare Copper
    Conductor Size: 26 AWG
    Conductor Construction: Stranded
    Insulation Material: Cellular PO
    Conductor Color Code: Blue x White, Green x White
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: Aluminum face outwards
    Overall Shield Design: Braid
    Overall Shield Material: Tinned-copper braid
    Braid Coverage: 60 % nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Impedance: 100 Ω
    Max. DC Resistance : 145 Ω/km@20°C
    Attenuation: 2.9 dB/100m max. @ 1 MHz
    8.5 dB/100m max. @ 10 MHz
    12.1 dB/100m max. @ 20 MHz
    Velocity of Propagation: 80 % nom.
    Dielectric Strength: 300 V/minute
    Dielectric Strength to Shield: 300 V/minute
    Min. Bend Radius: 60 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
