    Teldor- 8291294xxx RS-485/422/232 120 Ω (2x2x24 AWG F/UTP + 2x18 AWG)工作站用線
    看原圖
    		TELDOR-8291294XXX

    商品編號: Teldor-8291294xxx

    Teldor- 8291294xxx RS-485/422/232 120 Ω (2x2x24 AWG F/UTP + 2x18 AWG)工作站用線


    RS-485/422/232 120 Ω (2x2x24 AWG F/UTP + 2x18 AWG)

    Part Number:
    8291294xxx
    　
    Applications: Industrial communication, RS-485, RS-422, Fixed or portable installations, RS-232

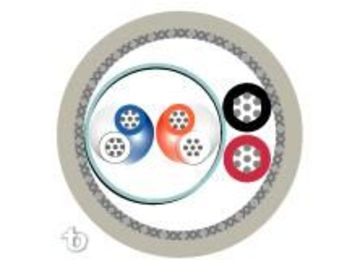

    General Construction: The cable contains two overall aluminum-foil shielded twisted pairs, two 18 AWG insulated conductors, all cabled together with filler elements and overall shielded with tinned copper braid and jacketed with FR-PVC compound.
    Outer Jacket Material: FR-PVC
    Outer Diameter: 9.4 mm nom.
    Weight: 115 kg/km
    Design & Materials
    Detailed Construction:

    Function Element DC resistance
    　    		 Color Code
    RS-485/422 2x2x24 AWG 95
    　
    white/blue X blue,
    white/orange X orange
    SIGNAL 2x18 AWG 25
    　    		 red, black

    The specifications listed bellow, refer to the RS-485/422 shielded section of the cable.
    　

    Conductor Material: Tinned Copper
    Conductor Size: 24 AWG
    Conductor Construction: 7x0.20 mm
    Insulation Material: PO
    Conductor Color Code: Blue x White/Blue, Orange x White/Orange
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: Aluminum face outwards
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 90 % nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Impedance: 120 Ω
    Max. DC Resistance : 95.0 Ω/km@20°C
    Attenuation: 21.3 dB/Km max. @ 1 MHz
    72.2 dB/Km max. @ 10 MHz
    102.0 dB/Km max. @ 20 MHz
    Capacitance: 42 pF/m
    Velocity of Propagation: 66 % nom.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Bend Radius: 80 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -30 °C
