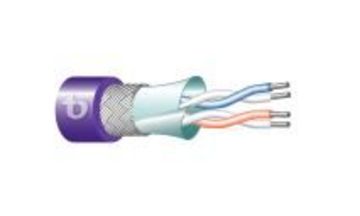

    Teldor-9822VC2xxx RS-485 2X2X22 AWG 120 Ω S/FTP cable PVC jacket
    看原圖
    		TELDOR-9822VC2XXX

    商品編號: Teldor-9822VC2xxx

    Teldor-9822VC2xxx RS-485 2X2X22 AWG 120 Ω S/FTP cable PVC jacket


    RS-485 2X2X22 AWG 120 Ω S/FTP cable PVC jacket

    Part Number:
    9822VC2xxx
    　
    Applications: Industrial communication, RS-485, RS-422
    General Construction: The cable contains two 22 AWG twisted pairs with an overall aluminum-foil shield and an overall braid shield. This shielded core is protected with a heavy duty jacket.
    Outer Jacket Material: FR-PVC
    Outer Diameter: 7.4 mm nom.
    Weight: 62 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: Cellular PO
    Insulation O.D.: 2.13 mm nom.
    Color code: Per IEC 60189-2
    Overall Shield Design: Aluminum face outwards
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: nom 65 % nom.
    Total number of wires: 4
    Outer Jacket Thickness: 0.8 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Flamability Rating: UL 1581 VW-1
    Performance
    Electrical Properties:
    DC loop resistance:                         120.0 W/km max. @ 20
    Impedance: 120 Ω
    Attenuation:
    　
    0.57 dB/100m @ 100 KHz max.
    0.83 dB/100m @ 200 KHz max.
    1.30 dB/100m @ 500 KHz max.
    1.83 dB/100m @ 1 Mhz max.
    Capacitance: 40 pF/m
    Min. Bend Radius: 72 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -20 °C
