    Teldor- 9FY9E2Vxxx RS-422/485 120 Ω 2X2X20/19 AWG SF/UTP PVC 20Awg x2P

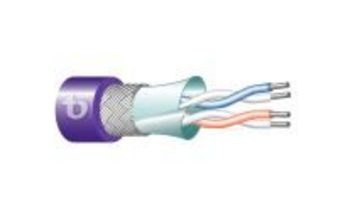

    看原圖
    		TELDOR-9FY9E2VXXX

    商品編號: Teldor-9FY9E2Vxxx

    Teldor- 9FY9E2Vxxx RS-422/485 120 Ω 2X2X20/19 AWG SF/UTP PVC 20Awg x2P


    RS-422/485 120 Ω 2X2X20/19 AWG SF/UTP PVC

    Part Number:
    9FY9E2Vxxx
    　
    Applications: Harsh Environments, RS-485, Data transmission, RS-422
    General Construction: The cable contains two 20/19 AWG pairs, cabled together with filler elements, overall double shielded with an aluminum-foil and tinned-copper braid. The shielded core is jacketed with UV resistant FR-PVC compound.
    　
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 12.3 mm nom.
    Weight: 70 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 20 AWG
    Conductor Construction: 19x0.20 mm
    Insulation Material: Cellular PO
    Insulation O.D.: 2.5 mm nom.
    Color code: Per IEC 60189-2
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: nom. 80 % nom.
    Overall Drain-wire Material: Tinned Copper
    Total number of wires: 4
    Outer Jacket Thickness: 0.9 mm nom.
    Outer Jacket Color: See TELDOR Jacket Code
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Electrical Properties:
    Frequency [MHz]
    　    		 Attenuation [dB/100m]
    　    		 NEXT attenuation [dB]
    　
    1
    　    		 1.5
    　    		 47
    　
    10
    　    		 4.0 35

    　
    Impedance: 120 Ω
    Coupling Attenuation: Type I
    Max. DC Resistance : 35 Ω/km@20°C
    Capacitance: 45 (pair) pF/m
    Velocity of Propagation: 80 % nom.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Bend Radius: 100 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -35 °C
    UV resistance: Yes
