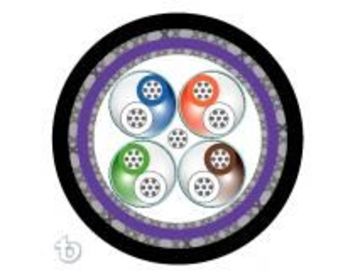

    Teldor-9FY9F4Fxxx RS-422/485 120 Ω 4Pair X2X 22 AWG S/FTP SBA FR-LSZH
    看原圖
    		TELDOR-9FY9F4FXXX

    商品編號: Teldor-9FY9F4Fxxx

    Teldor-9FY9F4Fxxx RS-422/485 120 Ω 4Pair X2X 22 AWG S/FTP SBA FR-LSZH


    RS-422/485 120 Ω 4X2X22 AWG S/FTP SBA FR-LSZH

    Part Number:
    9FY9F4Fxxx
    　
    Applications: Harsh Environments, Outdoor, High Noise Environments, Field bus on the process level, Industrial communication, RS-485, Data transmission, RS-422, Indoor/outdoor installation
    General Construction: Four 22 AWG pairs, cabled together with fillers,  overall aluminum-foil and copper braid shields. The shielded core is jacketed with a FR-LSZH compound, Steel Braid Armored and an FR-LSZH UV resistant outer jacket.
    Outer Jacket Material: FR-LSZH
    Outer Diameter: 17.0 mm nom.
    Weight: 400 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: Cellular PO
    Insulation O.D.: 2.13 mm nom.
    Insulation O.D.: 0.083 in.
    Conductor Color Code: White X Blue, White X Orange, White X Green, White X Brown
    Conductor unit lay-up: Pairs
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 65 % nom.
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 22 AWG
    Overall Drain-wire Construction: Stranded
    Inner Jacket Material: FR-LSZH
    Inner Jacket Diameter: 13.0 mm
    Inner Jacket Color: Per request
    Armoring: Braided Steel
    Outer Jacket Color: Black - or per request
    Weight: 268 lb/1000'
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , UL 1581 VW-1, UL 1581 FT-1
    Performance
    Frequency Range: 1 - 10 MHz
    Impedance: 120 Ω
    Coupling Attenuation: Type II
    Max. DC Resistance : 59.0 Ω/km@20°C
    Attenuation: 17 dB/km @ 1 MHz, 50 dB/km @ 10 MHz
    Capacitance: 42 pF/m
    Velocity of Propagation: 80 % nom.
    Dielectric Strength: 500 V/minute
    Dielectric Strength to Shield: 500 V/minute
    Min. Insulation Resistance : 4000 MΩ•km
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -50 °C
    UV resistance: Yes
