    Teldor-9FY9F4Uxxx RS-422/485 120 Ω 4X2X22 AWG SF/UTP PU jacket
    看原圖
    		TELDOR-9FY9F4UXXX

    商品編號: Teldor-9FY9F4Uxxx

    Teldor-9FY9F4Uxxx RS-422/485 120 Ω 4X2X22 AWG SF/UTP PU jacket


    RS-422/485 120 Ω 4X2X22 AWG SF/UTP PU jacket

    Part Number:
    9FY9F4Uxxx
    　
    Applications: RS-485, Data transmission, RS-422, RS-232

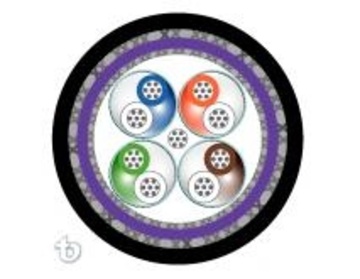

    General Construction: The cable contains four 22 AWG pairs, cabled together with filler elements shielded with an overall aluminum-foil and overall tinned-copper braid. The shielded core is jacketed with a high industrial HF-FR PU compound.
    　
    Outer Jacket Material: FRZH-PU
    Outer Diameter: 11.5 mm nom.
    Weight: 114 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 7x0.25 mm
    Insulation Material: Cellular PO
    Insulation O.D.: 2.13 mm nom.
    Color code: Per IEC 60189-2
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 80 % nom.
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 22 AWG
    Overall Drain-wire Construction: Stranded
    Total number of wires: 8
    Outer Jacket Color: See TELDOR Jacket Code
    Weight: 76.6 lb/1000'
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Performance
    Impedance: 120 Ω
    Max. DC Resistance : 59.0 Ω/km@20°C
    Attenuation:

    Attenuation dB/100m

    Frequency KHz

    0.6

    100

    0.9

    200

    1.4

    500

    1.9

    1000

    5.4

    10000
    Capacitance: 45 pF/m
    Velocity of Propagation: 76 % nom.
    Dielectric Strength: 500 V/minute
    Min. Bend Radius: 50 mm
    Max. Operating Temperature: +85 °C
    Min. Operating Temperature: -55 °C
    UV resistance: Yes
