    Teldor-9FE3DBMxxx Low Capacitance 3X18/19 AWG F/UTP PVC + MB/PE Industrial 屋外 FieldbusH1
    看原圖
    		TELDOR-9FE3DBMXXX

    商品編號: Teldor-9FE3DBMxxx

    Teldor-9FE3DBMxxx Low Capacitance 3X18/19 AWG F/UTP PVC + MB/PE Industrial 屋外 FieldbusH1



    Low Capacitance 3X18/19 AWG F/UTP PVC + MB/PE

    Part Number:
    9FE3DBMxxx
    　
    Applications: Harsh Environments, Outdoor, ISA/SP-50 Fieldbus* Type A, Indoor/outdoor installation

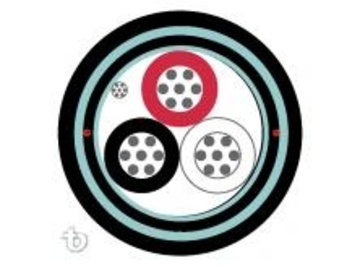

    General Construction: The cable contains 3 PE insulated stranded conductors, cabled together, wrapped with polyester tape and overall shielded with a polyester-aluminum foil. The shielded core is  internally jacketed with a  FR PVC compound, armored by 200 mic MB aluminum foil and UV resistant PE jacket
    　
    Outer Jacket Material: PE
    Outer Diameter: 10.2 mm nom.
    Weight: 120 kg/km

    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Construction: 19x0.25 mm
    Insulation Material: PE
    Insulation O.D.: 2.1 mm nom.
    Color code: Per request
    Conductor Color Code: Red, Black, White
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 20 AWG
    Overall Drain-wire Construction: Stranded
    Inner Jacket Material: FR-PVC
    Inner Jacket Diameter: 6.5 mm
    Armoring: Aluminum Foil
    Total number of wires: 3
    Rip-Cord: Yes
    Moisture Barrier: Yes
    Outer Jacket Color: Black - or per request
    Weight: 80.6 lb/1000'
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Performance
    Max. DC Resistance : 23 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Capacitance: 80 (pair) pF/m
    Capacitance Pair to Shield: 150 (single) pF/m
    Inductance: 0.57 µH/m
    Dielectric Strength: 1500 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Voltage Rating: 300 V
    Min. Bend Radius: 100 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
