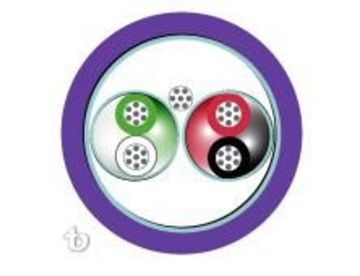

    Teldor-9FF6D2Mxxx Direct Burial Field Bus Cable with Moisture Barrier 2x(2x18 AWG) F/FTP PE jacket
    看原圖
    		TELDOR-9FF6D2MXXX

    商品編號: Teldor-9FF6D2Mxxx

    Teldor-9FF6D2Mxxx Direct Burial Field Bus Cable with Moisture Barrier 2x(2x18 AWG) F/FTP PE jacket


    Direct Burial Field Bus Cable with Moisture Barrier 2x(2x18 AWG) F/FTP PE jacket

    Part Number:
    9FF6D2Mxxx
    　
    Applications: Harsh Environments, Outdoor, Field bus on the process level, Industrial communication, ISA/SP-50 Fieldbus* Type A, RS-485, Indoor/outdoor installation
    General Construction:
    FieldBus cable designed for the process control and information levels.
    　
    Constructed according to NEC Article 725 Class 1for use in Division 2 hazardous areas.
    Outer Jacket Material: PE
    Outer Diameter: 16.4 mm nom.
    Weight: 250 kg/km
    		　
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 18 AWG
    Conductor Construction: 7x0.40 mm
    Insulation Material: Solid PO
    Insulation O.D.: 3.17 mm nom.
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Ind. Shield Thickness: 50+12 µ
    Conductor unit lay-up: Pairs
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Solid
    Drain-wire 1 size: 24 (MB drain) AWG
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Thickness: 50+12 µm
    Overall Foil Shield: Yes
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 20 (cable drain) AWG
    Overall Drain-wire Construction: Stranded
    Inner Jacket Material: FR-PVC
    Inner Jacket Thickness: 1.2 mm
    Inner Jacket Thickness: 0.047 in.
    Inner Jacket Diameter: 12.4 mm
    Inner Jacket Diameter: 0.488 in
    Inner Jacket Color: Black
    Total number of wires: 2 Pairs
    Moisture Barrier: Yes
    Outer Diameter: 0.645 in.
    Outer Jacket Thickness: 1.3 mm nom.
    Outer Jacket Thickness: 0.051 in
    Outer Jacket Color: See TELDOR Jacket Code
    Weight: 168 lb/1000'
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: UL 1685
    Performance
    Electrical Properties:
    　
    Cable voltage rating - Low voltage applications up to 1000 Vrms.
    　
    Impedance: 100 Ω
    Max. DC Resistance : 22.0 Ω/km@20°C
    Attenuation: 5.0 dB/Km max. @ 39.0 kHz
    Capacitance: 52.0 pF/m
    Dielectric Strength: 2000 V/minute
    Dielectric Strength to Shield: 1500 V/minute
    Voltage Rating: 1000 max. V
    Min. Bend Radius: 250 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
