    Teldor-9FF7K1Axxx Fieldbus Foundation H1 Class A 2x18/7 AWG S/FTP 100 Ω SBA FR-PVC
    看原圖
    		TELDOR-9FF7K1AXXX

    商品編號: Teldor-9FF7K1Axxx

    Teldor-9FF7K1Axxx Fieldbus Foundation H1 Class A 2x18/7 AWG S/FTP 100 Ω SBA FR-PVC


    Fieldbus Foundation H1 Class A 2x18/7 AWG S/FTP 100 Ω SBA FR-PVC

    Part Number:
    9FF7K1Axxx
    　
    Applications: Harsh Environments, Outdoor, High Noise Environments, Field bus on the process level, Industrial communication, ISA/SP-50 Fieldbus* Type A

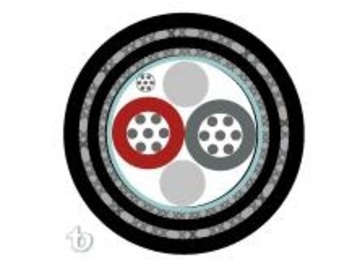

    General Construction: The cable contains one 18 AWG twisted pair cabled with filler memebers and drain conductor, overall shielded with copper braid and aluminum foil in the form SF/UTP. The shielded core is jacketed with FR-PVC compound. A Steel Braid Armor and outer UV resistant FR-PVC jacket makes the cable suitable for harsh environmental applications and for outdoor installations.
    　
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 12.8 mm nom.
    Weight: 285 kg/km

    　 RFQ
    Design & Materials
    Insulation Material: XLPE
    Insulation O.D.: 3.15 mm nom.
    Conductor Color Code: Black x White (or per request)
    Conductor unit lay-up: Pairs
    Overall Shield Design: Aluminum Foil + Braid
    Overall Shield Material: Tinned-copper braid
    Overall Foil Shield: Yes
    Overall Braid Shield: Yes
    Overall Drain-wire Material: Tinned Copper
    Overall Drain-wire size: 20 AWG
    Overall Drain-wire Construction: Stranded
    Inner Jacket Material: UV resistant FR-PVC
    Inner Jacket Diameter: 9.1 mm
    Armoring: Braided Steel
    Total number of wires: 2
    Outer Jacket Color: Black - or per request
    Weight: 191.3 lb/1000'
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , UL 1581 VW-1, UL 1581 FT-1, UL CMG
    Performance
    Impedance: 100 Ω
    Max. DC Resistance : 19 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Capacitance: 55.0 pF/m
    Inductance: 0.45 µH/m
    Velocity of Propagation: 68 % nom.
    Dielectric Strength: 2000 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Min. Insulation Resistance : 4000 MΩ•km
    Voltage Rating: 230 V
    Min. Bend Radius: 150 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
