    Teldor-9PF3701xxx Hybrid ProFibus 2X22/19 AWG SF/UTP +2x1.5 mmsq FR-PVC jacket
    看原圖
    		TELDOR-9PF3701XXX

    商品編號: Teldor-9PF3701xxx

    Teldor-9PF3701xxx Hybrid ProFibus 2X22/19 AWG SF/UTP +2x1.5 mmsq FR-PVC jacket


    Hybrid ProFibus 2X22/19 AWG SF/UTP +2x1.5 mmsq FR-PVC jacket

    Part Number:
    9PF3701xxx
    　
    Applications: Field bus on the process level, Industrial communication, ProfiBus LAN, Profibus PA industrial communication, Fixed or portable installations

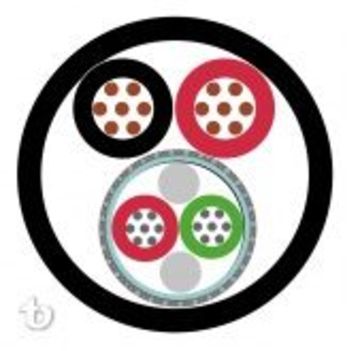

    General Construction: The cable contains one two 1.5 mm2 PVC insulated power conductors and a ProfiBus SF/UTP shielded core all cabled together with fillers, non-woven tape wrapping and jacketed with FR-PVC compound.
    　
    Outer Jacket Material: FR-PVC
    Outer Diameter: 11 mm nom.
    Weight: 128 kg/km
    Design & Materials
    Detailed Construction:
    ProfiBus Core:
    One foam PO insulated 22/19 AWG twisted pair and fillers, overall shielded with aluminum foil and tinned-copper braid. The core structure comply with L2-DP and PA ProfiBus applications.
    Power wires:
    conductor: 28x0.25mm BC
    Insulation: PVC compound
    color code: black, red
    OD=2.9 mm nom.
    voltage withstand: 1000 Vrms.


    note: the data listed below refer to the ProfiBus core


    　
    Conductor Material: Tinned Copper
    Conductor Size: 22 AWG
    Conductor Construction: 19x0.16 mm
    Insulation Material: Cellular PO
    Insulation O.D.: 2.6 mm nom.
    Insulation O.D.: 0.102 in.
    Conductor Color Code: Green X Red
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 60 % nom.
    Total number of wires: 2
    Outer Jacket Thickness: 1.0 mm nom.
    Outer Jacket Color: Black - or per request
    Weight: 86 lb/1000'
    Marking: Teldor Standard, Per request
    Standards
    Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-1, UL 1581 VW-1, UL CMX
    Performance
    Frequency Range: 1 - 20 MHz
    Impedance: 150 Ω
    Coupling Attenuation: Type I
    Max. DC Resistance : 55.0 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Attenuation: Max. 4.2 dB/100m @ 16 MHz
    Capacitance: 32.0 pF/m
    Capacitance Unbalance: 1.2 pF/m max.
    Velocity of Propagation: 75 % nom.
    Dielectric Strength: 700 V/minute
    Dielectric Strength to Shield: 700 V/minute
    Min. Insulation Resistance : 5 GΩ•km
    Voltage Rating: 250 V
    Min. Bend Radius: 65 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
