    首頁 > > Teldor-工業用工作站用線Industrial (Devicenet) BUS

    Teldor-Devicenet-9822T18xxx-DeviceNet Trunk (2x18 AWG + 2x15 AWG) S/FTP IEC 60332-1 UL approved
    看原圖
    		TELDOR-9822T18XXX

    商品編號: Teldor-Devicenet-9822T18xxx

    Teldor-Devicenet-9822T18xxx-DeviceNet Trunk (2x18 AWG + 2x15 AWG) S/FTP IEC 60332-1 UL approved

    Part Number:
    9822T18xxx
    　
    Applications: Harsh Environments, Data transmission, Fixed or portable installations, Trunk and drop lines of DeviceNet

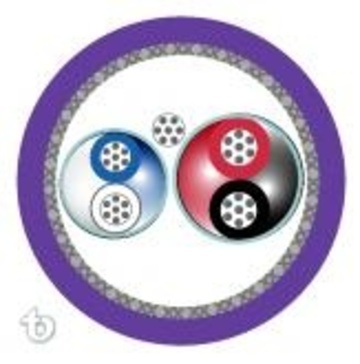

    General Construction: The cable contains one insulated stranded 18 AWG data pair and one insulated stranded 15 AWG power pair, each pair is individually aluminum foil-shielded, and cabled together with a drain-wire. The two pairs are overall braid shielded and jacketed with FR-LSZH compound
    Outer Jacket Material: FR-LSZH
    Outer Diameter: 12.10 mm nom.
    Weight: 183 kg/km





    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 18/15 AWG
    Conductor Size: 19x0.254 (18AWG)/19x0.36 (15AWG) mm
    Conductor Construction: Stranded
    Insulation Material: PO
    Insulation O.D.: 3.4 (18AWG)/2.5 (15AWG) mm nom.
    Insulation O.D.: 0.133(18AWG)/0.098(15AWG) in.
    Conductor Color Code: Blue x White (18AWG), Red x Black (15AWG)
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Stranded
    Drain-wire 1 size: 18 AWG
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 75 % nom.
    Total number of wires: 4
    Outer Diameter: 0.476 in.
    Outer Jacket Color: See TELDOR Jacket Code
    Weight: 123 lb/1000'
    Marking: Teldor Standard, Per request
