    Teldor-Devicenet-9822T48xxx DeviceNet Trunk (2x18 AWG +2x24 AWG) S/FTP (IEC 60332-1)
    看原圖
    		TELDOR-9822T48XXX

    商品編號: Teldor-Devicenet-9822T48xxx

    Teldor-Devicenet-9822T48xxx DeviceNet Trunk (2x18 AWG +2x24 AWG) S/FTP (IEC 60332-1)

    Part Number:
    9822T48xxx
    　
    Applications: Harsh Environments, Industrial communication, Data transmission, Trunk and drop lines of DeviceNet

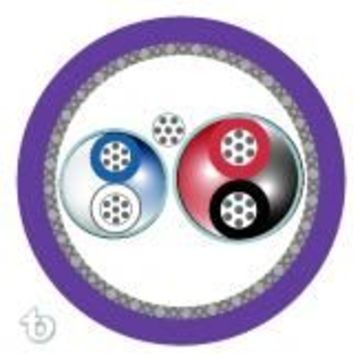

    General Construction: The cable contains one PE insulated stranded 24 AWG data pair and one PVC insulated stranded 18 AWG power pair, each pair is individually aluminum-foil shielded, and cabled together with a drain-wire. The two pairs are overall braid-shielded and jacketed with FR-PE based compound
    Outer Jacket Material: PO
    Outer Diameter: 9.0 mm nom.
    Weight: 114 kg/km
    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 18/24 AWG
    Conductor Size: 7x0.2 (24AWG) 16x0.255 (18AWG) mm
    Conductor Construction: Stranded
    Insulation O.D.: 2.15(24AWG) / 2.20(18AWG) mm nom.
    Insulation O.D.: 0.084(24AWG) / 0.0866(18AWG) in.
    Conductor Color Code: Blue x White (24AWG), Red x Black (18AWG)
    Ind. Shield Material: Aluminum/Polyester Foil
    Ind. Shield Design: 100% Coverage
    Drain-wire 1 Material: Tinned Copper
    Drain-wire 1 Construction: Stranded
    Drain-wire 1 size: 18 AWG
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 65 % nom.
    Total number of wires: 4
    Outer Jacket Color: See TELDOR Jacket Code
    Weight: 76 lb/1000'
    Marking: Teldor Standard, Per request
