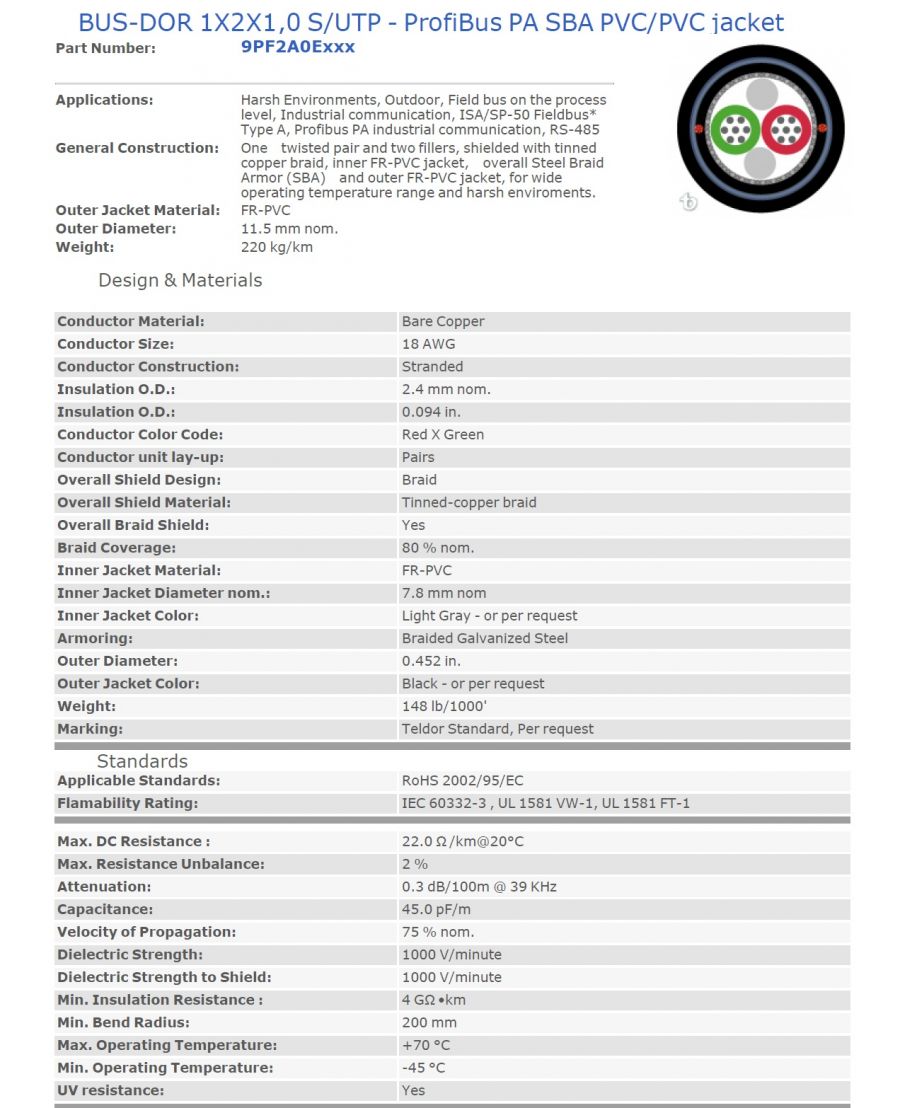

    Teldor-BUS-DOR 1X2X1,0 S/UTP - ProfiBus PA SBA PVC/PVC jacket(鋼絲鎧裝電纜)
    看原圖
    		TELDOR-9PF2A0EXXX

    商品編號: Teldor-ProfiBus-9PF2A0Exxx

    Teldor-BUS-DOR 1X2X1,0 S/UTP - ProfiBus PA SBA PVC/PVC jacket(鋼絲鎧裝電纜)




    Applications: Harsh Environments, Outdoor, Field bus on the process level, Industrial communication, ISA/SP-50 Fieldbus* Type A, Profibus PA industrial communication, RS-485
    General Construction: One twisted pair and two fillers, shielded with tinned copper braid, inner FR-PVC jacket, overall Steel Braid Armor (SBA) and outer FR-PVC jacket, for wide operating temperature range and harsh enviroments.
    　
    Outer Jacket Material: FR-PVC
    Outer Diameter: 11.5 mm nom.
    Weight: 220 kg/km


    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 18 AWG
    Conductor Construction: Stranded
    Insulation O.D.: 2.4 mm nom.
    Insulation O.D.: 0.094 in.
    Conductor Color Code: Red X Green
    Conductor unit lay-up: Pairs
    Overall Shield Design: Braid
    Overall Shield Material: Tinned-copper braid
    Overall Braid Shield: Yes
    Braid Coverage: 80 % nom.
    Inner Jacket Material: FR-PVC
    Inner Jacket Diameter nom.: 7.8 mm nom
    Inner Jacket Color: Light Gray - or per request
    Armoring: Braided Galvanized Steel
    Outer Diameter: 0.452 in.
    Outer Jacket Color: Black - or per request
    Weight: 148 lb/1000'
    Marking: Teldor Standard, Per request
    Standards
    Applicable Standards: RoHS 2002/95/EC
    Flamability Rating: IEC 60332-3 , UL 1581 VW-1, UL 1581 FT-1
    Performance
    Max. DC Resistance : 22.0 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Attenuation: 0.3 dB/100m @ 39 KHz
    Capacitance: 45.0 pF/m
    Velocity of Propagation: 75 % nom.
    Dielectric Strength: 1000 V/minute
    Dielectric Strength to Shield: 1000 V/minute
    Min. Insulation Resistance : 4 GΩ•km
    Min. Bend Radius: 200 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -45 °C
    UV resistance: Yes
