    Teldor-9PS3211xxx-BUS-DOR 1X2X22 AWG SF/UTP ProfiBus FC compatible cable PVC jacket
    看原圖
    		TELDOR-9PS3211XXX

    商品編號: Teldor-Profibus-9PS3211xxx

    Teldor-9PS3211xxx-BUS-DOR 1X2X22 AWG SF/UTP ProfiBus FC compatible cable PVC jacket


    BUS-DOR 1X2X22 AWG SF/UTP ProfiBus FC compatible cable PVC jacket

    Part Number:
    9PS3211xxx
    　
    Applications: Field bus on the process level, ProfiBus LAN, Food, beverage and tabacco industry, ISA/SP-50 Fieldbus* Type A, Profibus PA industrial communication, Tabacco Industry

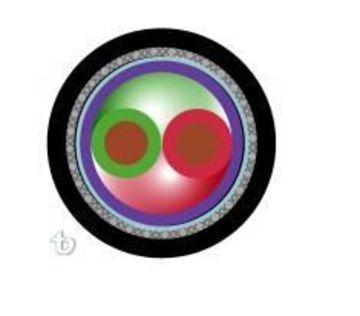

    General Construction: The cable contains one twisted pair a lay of special PVC compound suitable for FC (fast connect) , an overall shields of aluminum foil and tinned-copper braid and jacketed with PVC based compound.
    Outer Jacket Material: FR-PVC
    Outer Diameter: 8.0 mm nom.
    Weight: 80 kg/km

    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 22 AWG
    Conductor Size: 0.64 mm
    Conductor Construction: Solid
    Insulation Material: PO
    Insulation O.D.: 2.55 mm nom.
    Insulation O.D.: 0.1 in.
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Foil Shield: Yes
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 75 % nom.
    Inner Jacket Color: Natural
    Total number of wires: 2
    Outer Diameter: 0.314 in.
    Outer Jacket Thickness: 0.85 mm nom.
    Outer Jacket Thickness: 0.033 in
    Outer Jacket Color: See TELDOR Jacket Code
    Weight: 54 lb/1000'
    Marking: Per request
