    Teldor-9PS3213xxx-BUS-DOR 1X2X22 AWG SF/UTP ProfiBus FC compatible cable PE jacket
    看原圖
    		TELDOR-9PS3213XXX

    商品編號: Teldor-Profibus-9PS3213xxx

    Teldor-9PS3213xxx-BUS-DOR 1X2X22 AWG SF/UTP ProfiBus FC compatible cable PE jacket


    Part Number:
    9PS3213xxx
    　
    Applications: High Noise Environments, Field bus on the process level, Industrial communication, ProfiBus LAN, Food, beverage and tabacco industry, Profibus PA industrial communication, Tabacco Industry

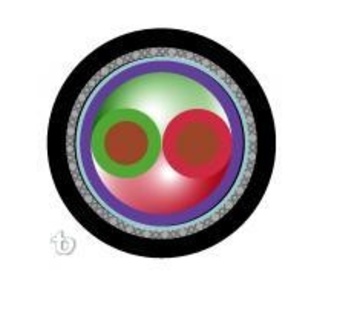

    General Construction: The cable contains one twisted pair a lay of special compound suitable for FC (fast connect) , an overall shields of aluminum foil and tinned-copper braid and jacketed with PE based compound.
    Outer Jacket Material: PE
    Outer Diameter: 8.0 mm nom.
    Weight: 71 kg/km
    Design & Materials
    Conductor Material: Bare Copper
    Conductor Size: 22 AWG
    Conductor Size: 0.64 mm
    Insulation Material: PO
    Insulation O.D.: 2.55 mm nom.
    Insulation O.D.: 0.1 in.
    Overall Shield Design: 100% Coverage
    Overall Shield Material: Aluminum/Polyester Foil
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 75 % nom.
    Inner Jacket Color: Natural
    Total number of wires: 2
    Outer Diameter: 0.314 in.
    Outer Jacket Thickness: 0.85 mm nom.
    Outer Jacket Thickness: 0.034 in
    Outer Jacket Color: See TELDOR Jacket Code
    Weight: 48 lb/1000'
    Marking: Per request
    Performance
    Frequency Range: 1 - 20 MHz
    Impedance: 150 Ω
    Max. DC Resistance : 55.0 Ω/km@20°C
    Attenuation: 42 dB/Km max. @ 16.0 MHz.
    Capacitance: 28.0 pF/m
    Dielectric Strength: 1000 V/minute
    Voltage Rating: 100 V
    Min. Bend Radius: 100 mm
    Max. Operating Temperature: +70 °C
    Min. Operating Temperature: -40 °C
    UV resistance: Yes
