    Teldor-CanBus 1X2X0.75 Sqmm 120 Ω S/UTP PVC jacket
    看原圖
    		TELDOR-CANBUS

    商品編號: Teldor-CanBus

    Teldor-CanBus 1X2X0.75 Sqmm 120 Ω S/UTP PVC jacket


    CanBus 1X2X0.75 Sqmm 120 Ω S/UTP PVC jacket

    Part Number:
    9FY1P1Vxxx
    　
    Applications: Field bus on the process level, Industrial communication, RS-485

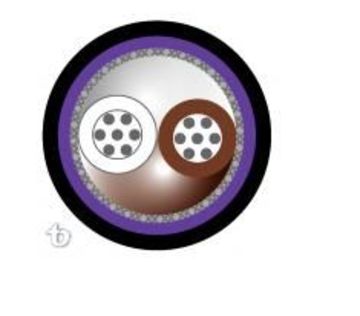

    General Construction: one 0.75 Sqmm twisted pair, an overall braid shield, jacketed with UV resistant -40C to + 80C  industrial grade FR-PVC .
    Outer Jacket Material: UV resistant FR-PVC
    Outer Diameter: 9.2 mm nom.
    Weight: 85 kg/km


    Design & Materials
    Conductor Material: Tinned Copper
    Conductor Size: 16x0.254 mm
    Insulation Material: Cellular PO
    Insulation O.D.: 3.56 mm nom.
    Insulation O.D.: 0.140 in.
    Conductor Color Code: white X brown
    Conductor unit lay-up: Pairs
    Overall Braid Shield: Yes
    Overall Braid Material: Tinned Copper
    Braid Coverage: 80 % nom.
    3rd Inner Jacket Color: Per request
    Total number of wires: 2
    Outer Diameter: 0.362 in.
    Outer Jacket Color: See TELDOR Jacket Code
    Weight: 57 lb/1000'
    Marking: Teldor Standard, Per request

    Standards
    Flamability Rating: IEC 60332-1, UL 1581 VW-1
    Performance
    Frequency Range: 1 - 10 MHz
    Impedance: 120 Ω
    Max. DC Resistance : 26 Ω/km@20°C
    Max. Resistance Unbalance: 2 %
    Attenuation: Max 0.4 dB @ 100 KHz, 1 dB @ 1 MHz, 2.6 dB @ 5 MHz, 3.8 dB @ 10 MHz per 100 m.
    Capacitance: 40 pF/m
    Velocity of Propagation: 75 % nom.
    Min. Bend Radius: 110 mm
    Max. Operating Temperature: 80 °C
    Min. Operating Temperature: -40 °C
    UV resistance:
