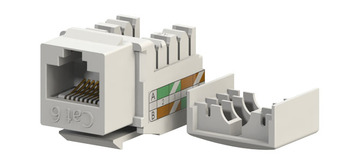

YD-504D CAT 6 UTP 無遮蔽式RJ45無焊錫模組90度資訊插座

描述	六類RJ45無焊錫模組90度. 六類 ANSI/TIA-568.C.2:2009 & ISO/IEC 11801規格. 採用UL-94V-0，耐衝擊、滯燃性ABS材質.

Material :

►Coupler Housing: Polycarbonate Resin High-Impact UL94V-0 Thermoplastic

►Contact Holder: ABS High-Impact UL94-0 Thermoplastic

►Spring Wire: Phosphor Bronize 5100W Temper Wire, Ø=0.45MM, 3U"

AU/30U" PDNI Over 60U" Nickel Undercoat

Physical Characteristics :

►Insertion Life: 750 Mating Cycles With FCC Compliant RJ-45 Plug.

►Contact Force: 100 Grams With FCC Compliant RJ-45 Plug.

►Plug Restention Force: 11 LBF Min.

►Operating Temperature Range: -10C to 60C

►Storage Temperature Range: -40C to 68C

►Humidity: 10%~90% RH.

Electrical :

►Insulation Resistance: 500M ohm.

►Dielectric Withstanding Voltage: 1000V AC.

►DC Current Rating: 1.5Amps.

►DC Resistance: 0.1 ohm.

►Contact Resistance: 20m ohm.

NOTE :

►A: Will Not Support Channel Shorter Than 15M.

►B: Do Not Insert RJ-11 6P Plug.
