    首頁 > > YAPEXY-Wire braided sleeving 電線編織網管

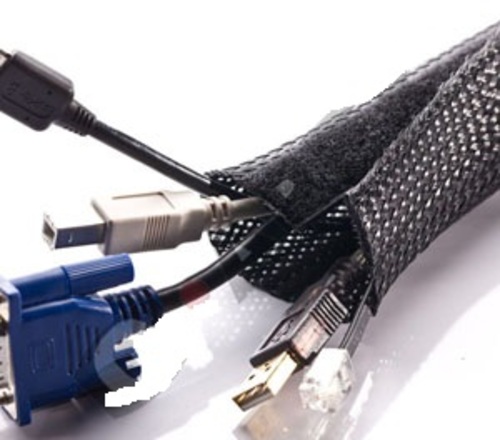

    YEIDA, BSWP PET Wire expandable wrap braided sleeving PET 電線線束等黏貼式編織擴充管
    看原圖
    		YAPEXY-BSWP

    YAPEXY-BSWP
    YEIDA, BSWP PET Wire expandable wrap braided sleeving PET 電線線束等黏貼式編織擴充管
    Applications
    Made from durable and environment friendly PET monofilament yarns and the open weave, hook and
    loop design conform to a variety of bundle diameters and irregular shapes that enables easy on and
    off installation and provides instant and convenient access for harness break-outs and rework of
    sections of cable, wire and hose assemblies.
    應用
    由PET 單絲編織而成，粘貼式的設計可以適用於各種各樣的捆綁尺寸和不規格的形狀，並可以很方便
    在雙端封閉的場合安裝和卸除。
    Characteristic
    UV light resistant polyester yarn
    Not affected by most chemicals and solvents
    The hook and loop have high cycle life
    Light weight and flexible for easy installation
    Excellent abrasion property
    特性
    抗紫外線
    對大部分的化學和溶解性物質有抵抗性
    粘貼部分具有很好的耐用性
    輕，柔軟方便施工
    優異的抗磨擦性能
    Operating temperature range
    Operating temperature : -40℃ ~ 125℃
    操作溫度範圍
    操作溫度 : -40˚C~125˚C
    顏色
    black，其它顏色依需求提供
    指定尺寸、裁切可依客戶需求特別要求另行提供



    阻燃材質 Flame retardant material

    產品型號Part No.

    尺寸Size (inch)

    張開寬度

    Opening expansion width
    Inch(mm)(min.)(W)

    Hook & Loop Width

    黏扣帶寬度inch(mm)(H)

    包裝Feet (M)/R

    mm(毫米)

    Inch(英吋)

    BSWP-FR1

    12.7

    1/2"

    2” (50)

    16

    65ft (20m)

    BSWP-FR2

    19.1

    3/4"

    2.75” (70)

    16

    65ft (20m)

    BSWP-FR3

    31.8

    1 1/4"

    4.9” (125)

    20

    65ft (20m)

    Non-flame retardant 非阻燃材質

    產品型號Part No.

    尺寸Size (inch)

    張開寬度

    Opening expansion width
    Inch(mm)(min.)(W)

    Hook & Loop Width

    黏扣帶寬度inch(mm)(H)

    包裝Feet (M)/R

    mm(毫米)

    Inch(英吋)

    BSWP-1

    12.7

    1/2"

    2” (50)

    16

    65ft (20m)

    BSWP-2

    19.1

    3/4"

    2.75” (70)

    16

    65ft (20m)

    BSWP-3

    31.8

    1 1/4"

    4.9” (125)

    20

    65ft (20m)

    阻燃材質 Flame retardant material

    產品型號Part No.

    尺寸Size (inch)

    張開寬度

    Opening expansion width
    Inch(mm)(min.)(W)

    Hook & Loop Width

    黏扣帶寬度inch(mm)(H)

    包裝Feet (M)/R

    mm(毫米)

    Inch(英吋)

    BSWP-FR1

    12.7

    1/2"

    2” (50)

    16

    65ft (20m)

    BSWP-FR2

    19.1

    3/4"

    2.75” (70)

    16

    65ft (20m)

    BSWP-FR3

    31.8

    1 1/4"

    4.9” (125)

    20

    65ft (20m)

    Non-flame retardant 非阻燃材質

    產品型號Part No.

    尺寸Size (inch)

    張開寬度

    Opening expansion width
    Inch(mm)(min.)(W)

    Hook & Loop Width

    黏扣帶寬度inch(mm)(H)

    包裝Feet (M)/R

    mm(毫米)

    Inch(英吋)

    BSWP-1

    12.7

    1/2"

    2” (50)

    16

    65ft (20m)

    BSWP-2

    19.1

    3/4"

    2.75” (70)

    16

    65ft (20m)

    BSWP-3

    31.8

    1 1/4"

    4.9” (125)

    20

    65ft (20m)
