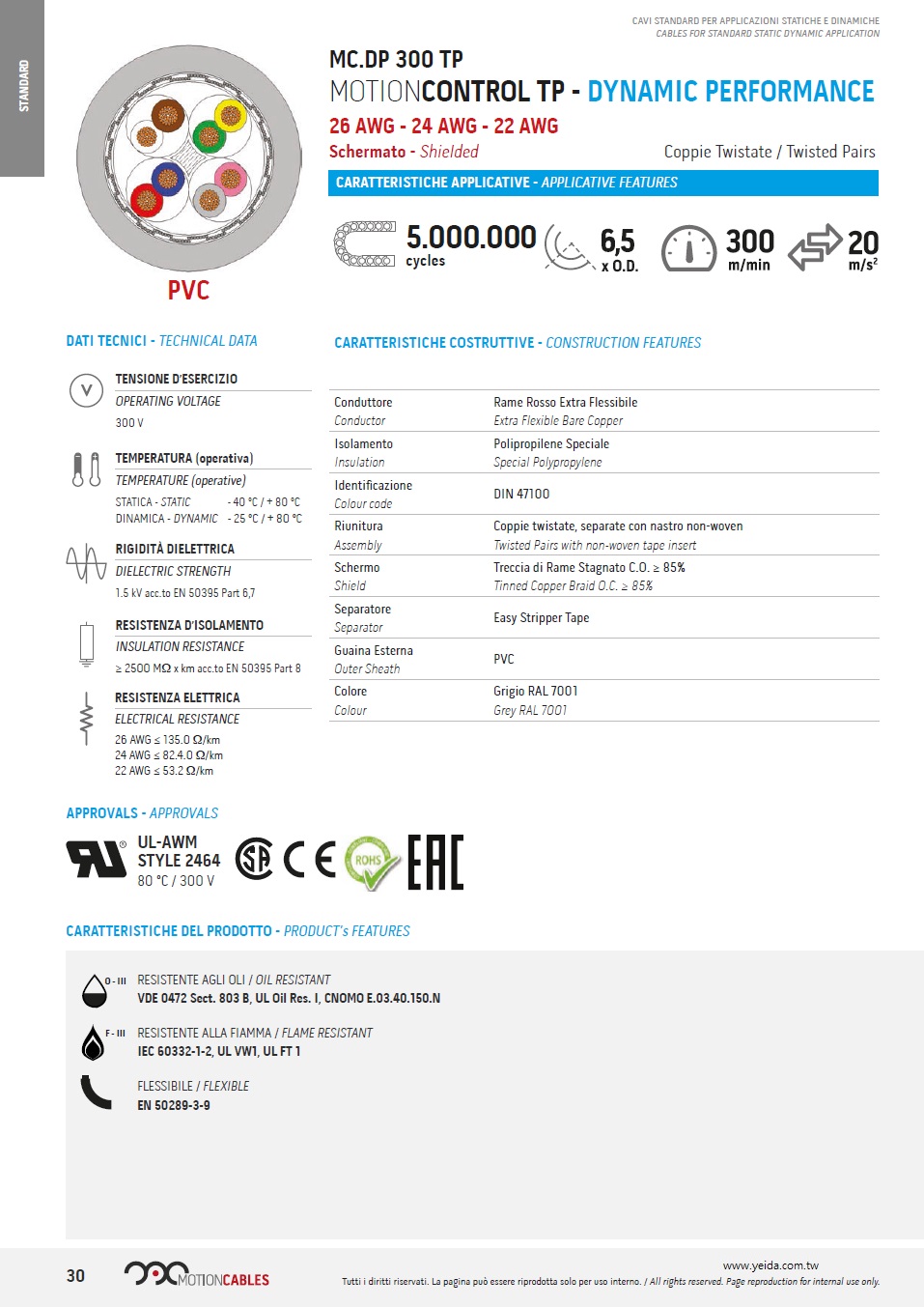

MC-DP300TP

MOTIONCONTROL TP - DYNAMIC PERFORMANCE, AWG(26, 24, 22)  Twisted Pairs, Shielded, UL2464, 300V, PVC 五百萬次週期高性能低溫超柔性移動式訊號控制屏蔽隔離對絞型電纜 (耐油, 阻燃, 低溫超柔性動態,)

CARATTERISTICHE COSTRUTTIVE - CONSTRUCTION FEATURES
Conductor
Extra Flexible Bare Copper
Insulation
Special Polypropylene
Colour code
DIN 47100
Assembly
Multi-layers divided by non-woven tape insert
Shield
Tinned Copper Braid O.C. ≥ 85%
Separator
Easy Stripper Tape
Outer Sheath
PVC
Colour
Grey RAL 7001

CARATTERISTICHE DEL PRODOTTO - PRODUCT's FEATURES

TEMPERATURE (operative)
STATICA - STATIC - 40 °C / + 80 °C
COLD RESISTANT
EN 60811-1-4
ABRASION RESISTANT

OIL RESISTANT
VDE 0472 Sect. 803 B, UL Oil Res. I, CNOMO E.03.40.150.N
FLAME RESISTANT
IEC 60332-1-2, UL VW1, FT 1
HALOGEN FREE
EN 50289-3-9

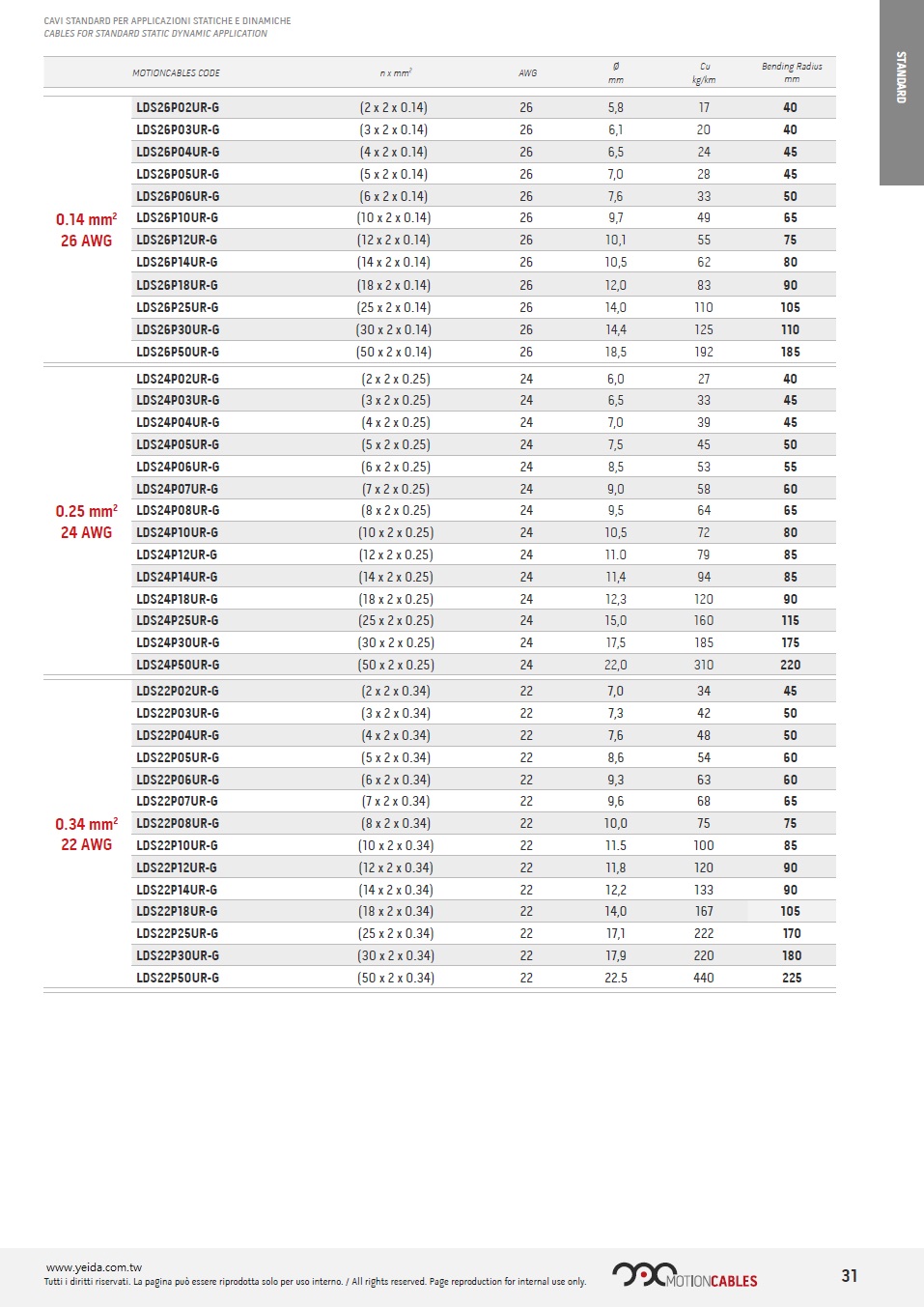

MOTIONCABLES CODE n x mm2 AWG

0.14 mm2
26 AWG
LDS26P02UR-G,  (2 x 2 x 0.14) 26 5,8 17 40
LDS26P03UR-G,  (3 x 2 x 0.14) 26 6,1 20 40
LDS26P04UR-G,  (4 x 2 x 0.14) 26 6,5 24 45
LDS26P05UR-G,  (5 x 2 x 0.14) 26 7,0 28 45
LDS26P06UR-G,  (6 x 2 x 0.14) 26 7,6 33 50
LDS26P10UR-G,  (10 x 2 x 0.14) 26 9,7 49 65
LDS26P12UR-G,  (12 x 2 x 0.14) 26 10,1 55 75
LDS26P14UR-G,  (14 x 2 x 0.14) 26 10,5 62 80
LDS26P18UR-G,  (18 x 2 x 0.14) 26 12,0 83 90
LDS26P25UR-G,  (25 x 2 x 0.14) 26 14,0 110 105
LDS26P30UR-G,  (30 x 2 x 0.14) 26 14,4 125 110
LDS26P50UR-G,  (50 x 2 x 0.14) 26 18,5 192 185

0.25 mm2
24 AWG
LDS24P02UR-G,  (2 x 2 x 0.25) 24 6,0 27 40
LDS24P03UR-G,  (3 x 2 x 0.25) 24 6,5 33 45
LDS24P04UR-G,  (4 x 2 x 0.25) 24 7,0 39 45
LDS24P05UR-G,  (5 x 2 x 0.25) 24 7,5 45 50
LDS24P06UR-G,  (6 x 2 x 0.25) 24 8,5 53 55
LDS24P07UR-G,  (7 x 2 x 0.25) 24 9,0 58 60
LDS24P08UR-G,  (8 x 2 x 0.25) 24 9,5 64 65
LDS24P10UR-G,  (10 x 2 x 0.25) 24 10,5 72 80
LDS24P12UR-G,  (12 x 2 x 0.25) 24 11.0 79 85
LDS24P14UR-G,  (14 x 2 x 0.25) 24 11,4 94 85
LDS24P18UR-G,  (18 x 2 x 0.25) 24 12,3 120 90
LDS24P25UR-G,  (25 x 2 x 0.25) 24 15,0 160 115
LDS24P30UR-G,  (30 x 2 x 0.25) 24 17,5 185 175
LDS24P50UR-G,  (50 x 2 x 0.25) 24 22,0 310 220

0.34 mm2
22 AWG
LDS22P02UR-G,  (2 x 2 x 0.34) 22 7,0 34 45
LDS22P03UR-G,  (3 x 2 x 0.34) 22 7,3 42 50
LDS22P04UR-G,  (4 x 2 x 0.34) 22 7,6 48 50
LDS22P05UR-G,  (5 x 2 x 0.34) 22 8,6 54 60
LDS22P06UR-G,  (6 x 2 x 0.34) 22 9,3 63 60
LDS22P07UR-G,  (7 x 2 x 0.34) 22 9,6 68 65
LDS22P08UR-G,  (8 x 2 x 0.34) 22 10,0 75 75
LDS22P10UR-G,  (10 x 2 x 0.34) 22 11.5 100 85
LDS22P12UR-G,  (12 x 2 x 0.34) 22 11,8 120 90
LDS22P14UR-G,  (14 x 2 x 0.34) 22 12,2 133 90
LDS22P18UR-G,  (18 x 2 x 0.34) 22 14,0 167 105
LDS22P25UR-G,  (25 x 2 x 0.34) 22 17,1 222 170
LDS22P30UR-G,  (30 x 2 x 0.34) 22 17,9 220 180
LDS22P50UR-G,  (50 x 2 x 0.34) 22 22.5 440 225
