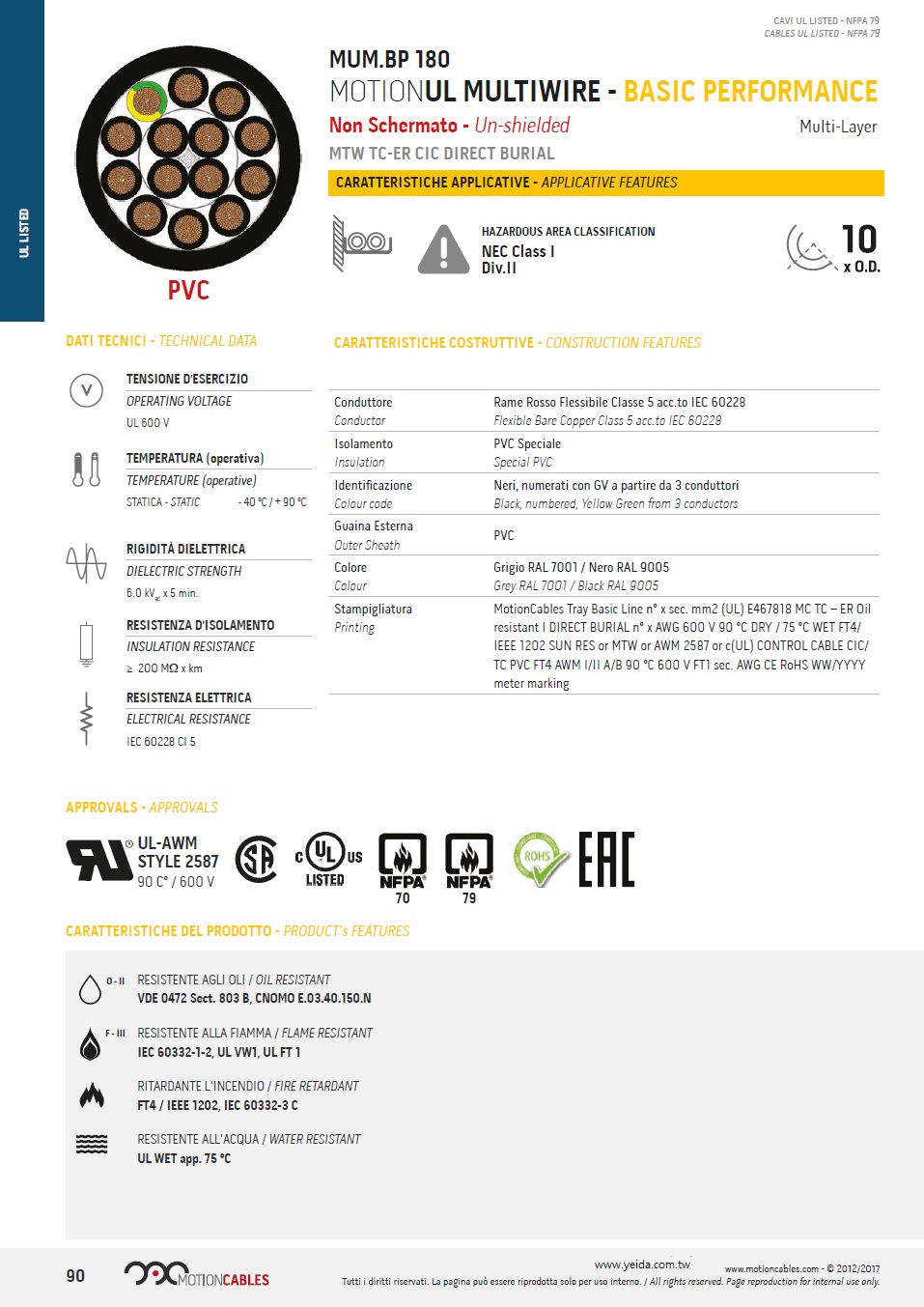

MUM-BP180

MUM.BP 180, MOTIONUL MULTIWIRE - BP, MTW TC-ER CIC DIRECT BURIAL, UL2587,  機床接線, 托盤運行, 可直埋電纜  (耐油, 阻燃, 耐火, 防水)

APPROVALS: UL2587, CSA, NFPA79, NFPA70, ROHS, EAC

CONSTRUCTION FEATURES
Conductor
Flexible Bare Copper Class 5 acc.to IEC 60228

Insulation
Special PVC

Colour code
Black, numbered, Yellow Green from 3 conductors

Outer Sheath
PVC

Colour
Grey RAL 7001 / Black RAL 9005

Printing
MotionCables Tray Basic Line n° x sec. mm2 (UL) E467818 MC TC – ER Oil
resistant I DIRECT BURIAL n° x AWG 600 V 90 °C DRY / 75 °C WET FT4/
IEEE 1202 SUN RES or MTW or AWM 2587 or c(UL) CONTROL CABLE CIC/
TC PVC FT4 AWM I/II A/B 90 °C 600 V FT1 sec. AWG CE RoHS WW/YYYY
meter marking

TECHNICAL DATA

PRODUCT's FEATURES
WATER RESISTANT
UL WET app. 75 °C
OIL RESISTANT
VDE 0472 Sect. 803 B, CNOMO E.03.40.150.N
FLAME RESISTANT
IEC 60332-1-2, UL VW1, UL FT 1

FIRE RETARDANT
FT4 / IEEE 1202, IEC 60332-3 C
PVC

ELECTRICAL RESISTANCE
IEC 60228 Cl 5

INSULATION RESISTANCE
≥ 200 MΩ x km

DIELECTRIC STRENGTH
6.0 kVac x 5 min.

TEMPERATURE (operative)
STATIC - 40 °C / + 90 °C

OPERATING VOLTAGE
UL 600 V

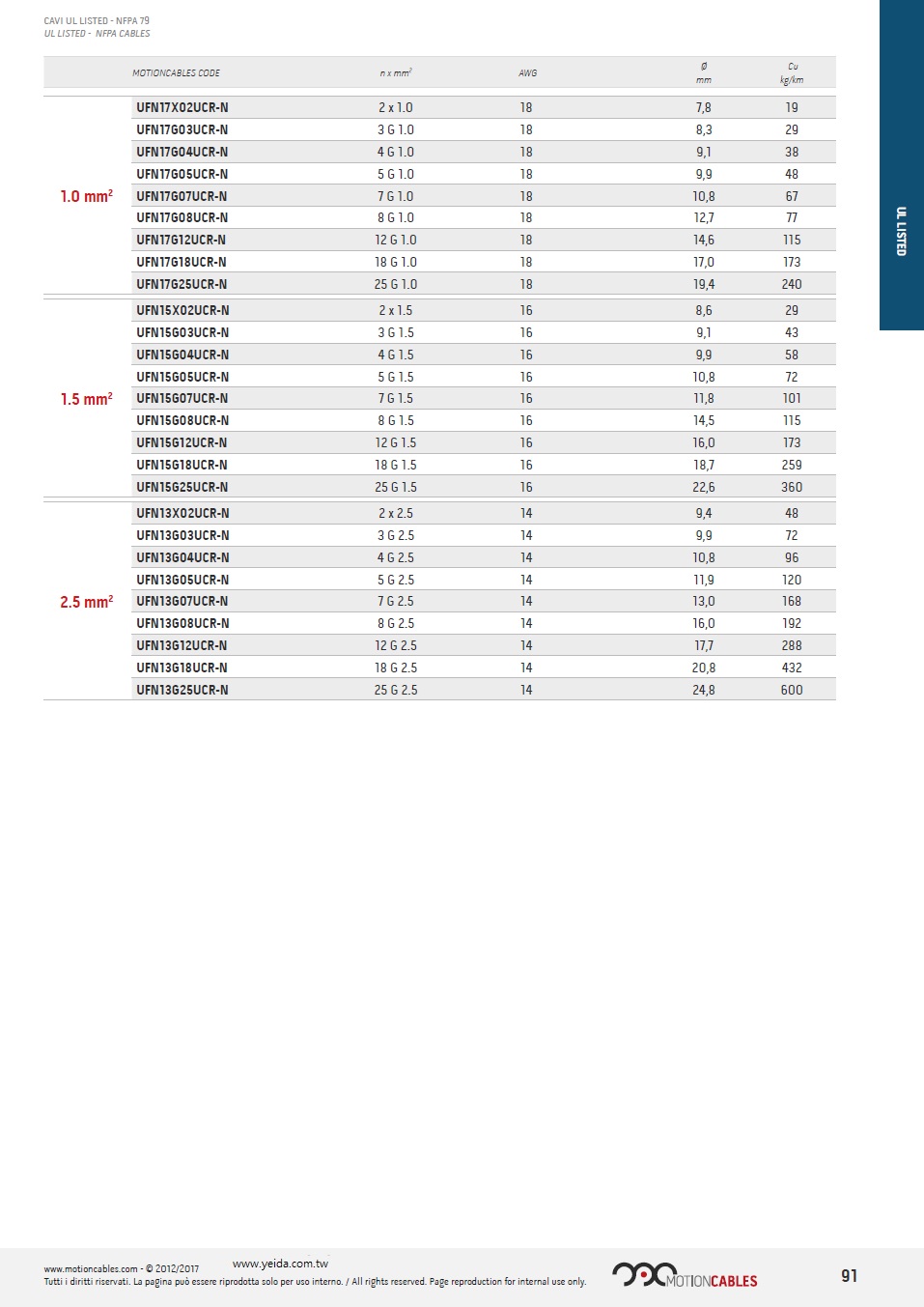

MOTIONCABLES CODE n x mm2 AWG

1.0 mm2
UFN17X02UCR-N,  2 x 1.0 18 7,8 19
UFN17G03UCR-N,  3 G 1.0 18 8,3 29
UFN17G04UCR-N,  4 G 1.0 18 9,1 38
UFN17G05UCR-N,  5 G 1.0 18 9,9 48
UFN17G07UCR-N,  7 G 1.0 18 10,8 67
UFN17G08UCR-N,  8 G 1.0 18 12,7 77
UFN17G12UCR-N,  12 G 1.0 18 14,6 115
UFN17G18UCR-N,  18 G 1.0 18 17,0 173
UFN17G25UCR-N,  25 G 1.0 18 19,4 240
1.5 mm2
UFN15X02UCR-N,  2 x 1.5 16 8,6 29
UFN15G03UCR-N,  3 G 1.5 16 9,1 43
UFN15G04UCR-N,  4 G 1.5 16 9,9 58
UFN15G05UCR-N,  5 G 1.5 16 10,8 72
UFN15G07UCR-N,  7 G 1.5 16 11,8 101
UFN15G08UCR-N,  8 G 1.5 16 14,5 115
UFN15G12UCR-N,  12 G 1.5 16 16,0 173
UFN15G18UCR-N,  18 G 1.5 16 18,7 259
UFN15G25UCR-N,  25 G 1.5 16 22,6 360
2.5 mm2
UFN13X02UCR-N,  2 x 2.5 14 9,4 48
UFN13G03UCR-N,  3 G 2.5 14 9,9 72
UFN13G04UCR-N,  4 G 2.5 14 10,8 96
UFN13G05UCR-N,  5 G 2.5 14 11,9 120
UFN13G07UCR-N,  7 G 2.5 14 13,0 168
UFN13G08UCR-N,  8 G 2.5 14 16,0 192
UFN13G12UCR-N,  12 G 2.5 14 17,7 288
UFN13G18UCR-N,  18 G 2.5 14 20,8 432
UFN13G25UCR-N,  25 G 2.5 14 24,8 600
