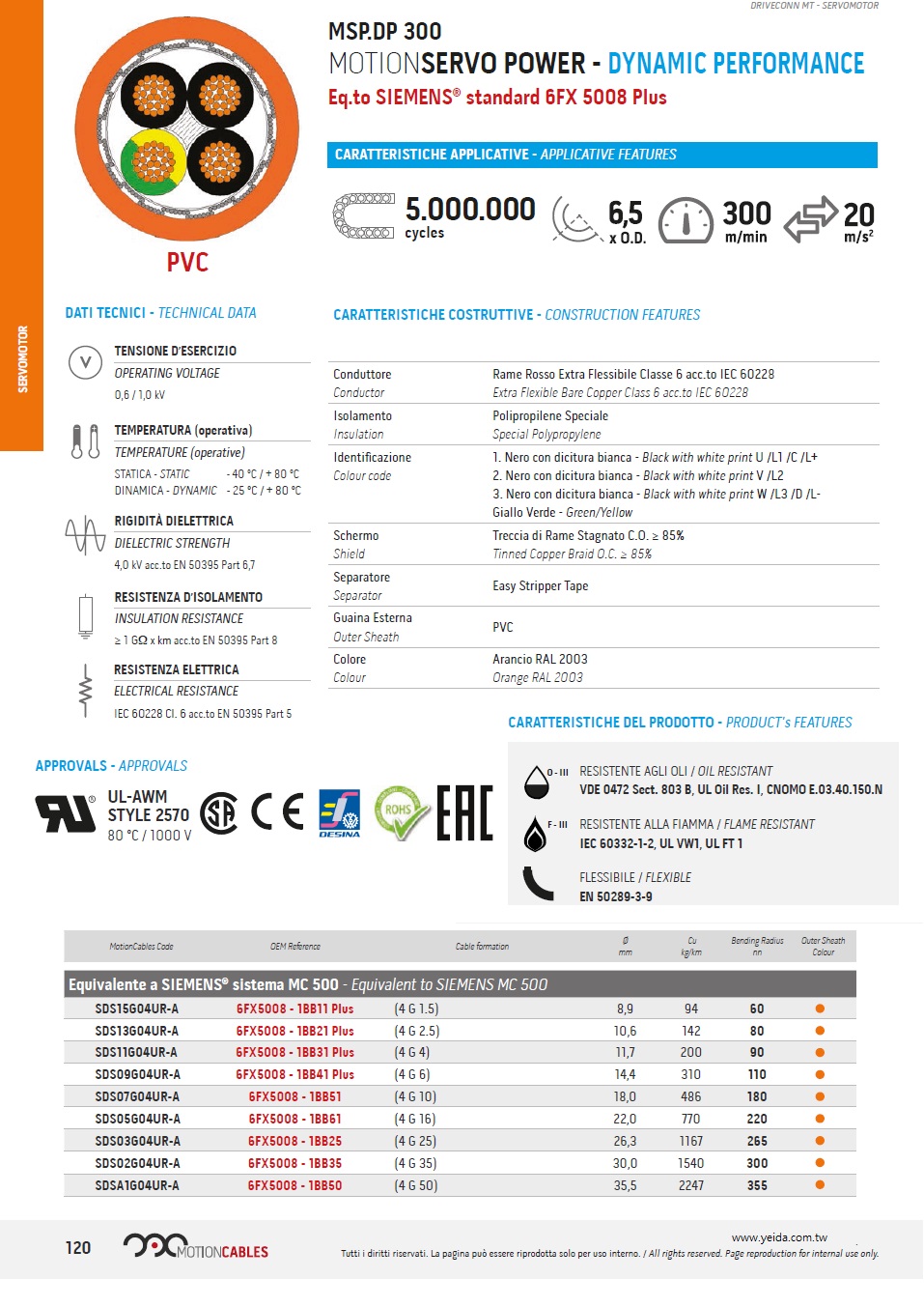

MSP-DP300

MSP.DP 300
MOTIONSERVO POWER - DYNAMIC PERFORMANCE Eq.to SIEMENS® standard 6FX 5008 Plus (UL2570, CSA, CE, DESNA, ROHS, EAC) 1000V, 西門子標準伺服馬達驅動電力電纜線(工業托鏈五百萬次週期移運動)(耐油, 阻耐燃, 柔性, 屏蔽隔離)

CONSTRUCTION FEATURES

Conductor
Extra Flexible Bare Copper Class 6 acc.to IEC 60228

Insulation
Special Polypropylene

Colour code
1. Black with white print U /L1 /C /L+
2. Black with white print V /L2
3. Black with white print W /L3 /D /LGiallo Green/Yellow

Shield
Tinned Copper Braid O.C. ≥ 85%

Separator
Easy Stripper Tape

Outer Sheath
PVC

Colour
Orange RAL 2003

TECHNICAL DATA

OPERATING VOLTAGE
0,6 / 1,0 kV

TEMPERATURE (operative)
STATIC - 30 °C / + 80 °C

DIELECTRIC STRENGTH
4,0 kV acc.to EN 50395 Part 6,7

INSULATION RESISTANCE
≥ 1 GΩ x km acc.to EN 50395 Part 8

ELECTRICAL RESISTANCE
IEC 60228 Cl. 5 acc.to EN 50395 Part 5

PRODUCT's FEATURES

OIL RESISTANT
VDE 0472 Sect. 803 B, UL Oil Res. I, CNOMO E.03.40.150.N
FLAME RESISTANT
IEC 60332-1-2, UL VW1, UL FT 1

FLESSIBILE / FLEXIBLE
EN 50289-3-9

MotionCables Code OEM Reference Cable formation

Equivalente a SIEMENS® sistema MC 500 - Equivalent to SIEMENS MC 500
SDS15G04UR-A 6FX5008 - 1BB11 Plus (4 G 1.5) 8,9 94 60
SDS13G04UR-A 6FX5008 - 1BB21 Plus (4 G 2.5) 10,6 142 80
SDS11G04UR-A 6FX5008 - 1BB31 Plus (4 G 4) 11,7 200 90
SDS09G04UR-A 6FX5008 - 1BB41 Plus (4 G 6) 14,4 310 110
SDS07G04UR-A 6FX5008 - 1BB51 (4 G 10) 18,0 486 180
SDS05G04UR-A 6FX5008 - 1BB61 (4 G 16) 22,0 770 220
SDS03G04UR-A 6FX5008 - 1BB25 (4 G 25) 26,3 1167 265
SDS02G04UR-A 6FX5008 - 1BB35 (4 G 35) 30,0 1540 300
SDSA1G04UR-A 6FX5008 - 1BB50 (4 G 50) 35,5 2247 355
