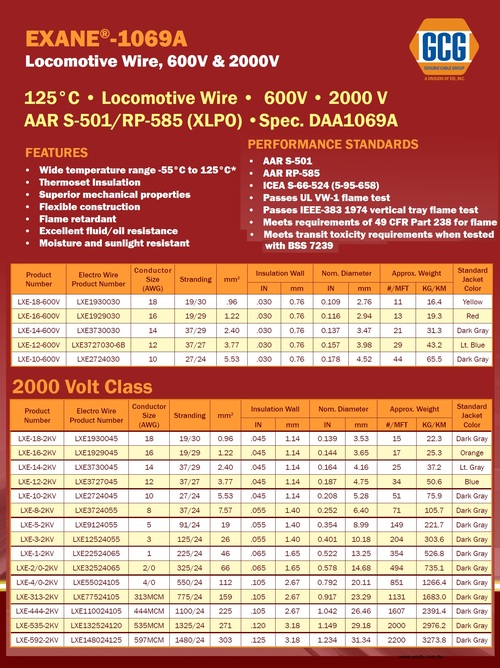

EXANE-1069A, 125°C • Locomotive Wire • 600V • 2000 V AAR S-501/RP-585 (XLPO) DAA1069A 火車頭機車發動機電源電線
Exane®-1069A
125°C • Locomotive Wire • 600V • 2000 V
AAR S-501/RP-585 (XLPO) •Spec. DAA1069A
Scope
Exane®-1069A Diesel Cable is a tough, flame retardant construction ideally suited for rugged, railroad diesel electric locomotive applications. It has a high temperature rating yet will not crack at temperatures down t0 -55°C. Exane® Diesel Locomotive Cable has much better resistance to cut-through, crush, and scrape abrasion than rubber, EPR, Neoprene and Hypalon. It is also more flexible and has better overload characteristics than fluoropolymers. Exane® has good moisture and oil resistance, excellent fire resistance, low smoke and acid gas generation characterstics, and resists stress cracking and conduits. RHW-2 walls meet UL requirements and provide enhanced mechanical toughness.
Features
• Wide temperature range –55°C to 125°C*
• Thermoset Insulation
• Superior mechanical properties
• Flexible construction
• Flame retardant
• Excellent fluid/oil resistance
• Moisture and sunlight resistant
Performance Standards
• AAR S-501
• AAR RP-585
• ICEA S-66-524 (5-95-658)
• Passes UL VW-1 flame test
• Passes IEEE-383 1974 vertical tray flame test
• Meets requirements of 49 CFR Part 238 for flame and smoke requirements
• Meets transit toxicity requirements when tested in accordance with BSS 7239
Construction
Conductor: Annealed, Tinned copper per ASTM B33, B172, AAR S-501, and AAR RP-585
Insulation: Crosslinked polyolefin, Exane® (colors-as required)
* RSCC rated 125°C, maximum 130°C overload, 250°C short circuit
600 Volt Class
Product
Number
|
Electro Wire
Product Number
|
Cond. Size
(AWG)
|
Stranding
|
mm2
|
Insulation Wall
|
Nom. Diameter
|
Approx. Weight
|
Std.
Jacket
Color
|
In
|
mm
|
In
|
mm
|
#/MFT
|
KG/KM
|
LXE-18-600V
|
LXE1930030
|
18
|
19/30
|
.96
|
.030
|
0.76
|
0.109
|
2.76
|
11
|
16.4
|
Yellow
|
LXE-16-600V
|
LXE1929030
|
16
|
19/29
|
1.22
|
.030
|
0.76
|
0.116
|
2.94
|
13
|
19.3
|
Red
|
LXE-14-600V
|
LXE3730030
|
14
|
37/29
|
2.40
|
.030
|
0.76
|
0.137
|
3.47
|
21
|
31.3
|
Dark Gray
|
LXE-12-600V
|
LXE3727030-6B
|
12
|
37/27
|
3.77
|
.030
|
0.76
|
0.157
|
3.98
|
29
|
43.2
|
Lt. Blue
|
LXE-10-600V
|
LXE2724030
|
10
|
27/24
|
5.53
|
.030
|
0.76
|
0.178
|
4.52
|
44
|
65.5
|
Dark Gray
|
2000 Volt Class
Product
Number
|
Electro Wire
Product Number
|
Cond. Size
(AWG)
|
Stranding
|
mm2
|
Insulation Wall
|
Nom. Diameter
|
Approx. Weight
|
Std.
Jacket
Color
|
In
|
mm
|
In
|
mm
|
#/MFT
|
KG/KM
|
LXE-18-2KV
|
LXE1930045
|
18
|
19/30
|
0.96
|
.045
|
1.14
|
0.139
|
3.53
|
15
|
22.3
|
Dark Gray
|
LXE-16-2KV
|
LXE1929045
|
16
|
19/29
|
1.22
|
.045
|
1.14
|
0.144
|
3.65
|
17
|
25.3
|
Orange
|
LXE-14-2KV
|
LXE3730045
|
14
|
37/29
|
2.40
|
.045
|
1.14
|
0.164
|
4.16
|
25
|
37.2
|
Lt. Gray
|
LXE-12-2KV
|
LXE3727045
|
12
|
37/27
|
3.77
|
.045
|
1.14
|
0.187
|
4.75
|
34
|
50.6
|
Blue
|
LXE-10-2KV
|
LXE2724045
|
10
|
27/24
|
5.53
|
.045
|
1.14
|
0.208
|
5.28
|
51
|
75.9
|
Dark Gray
|
LXE-8-2KV
|
LXE3724055
|
8
|
37/24
|
7.57
|
.055
|
1.40
|
0.252
|
6.40
|
71
|
105.7
|
Dark Gray
|
LXE-5-2KV
|
LXE9124055
|
5
|
91/24
|
19
|
.055
|
1.40
|
0.354
|
8.99
|
149
|
221.7
|
Dark Gray
|
LXE-3-2KV
|
LXE12524055
|
3
|
125/24
|
26
|
.055
|
1.40
|
0.401
|
10.18
|
204
|
303.6
|
Dark Gray
|
LXE-1-2KV
|
LXE22524065
|
1
|
225/24
|
46
|
.065
|
1.65
|
0.522
|
13.25
|
354
|
526.8
|
Dark Gray
|
LXE-2/0-2KV
|
LXE32524065
|
2/0
|
325/24
|
66
|
.065
|
1.65
|
0.578
|
14.68
|
494
|
735.1
|
Dark Gray
|
LXE-4/0-2KV
|
LXE55024105
|
4/0
|
550/24
|
112
|
.105
|
2.67
|
0.792
|
20.11
|
851
|
1266.4
|
Dark Gray
|
LXE-313-2KV
|
LXE77524105
|
313MCM
|
775/24
|
159
|
.105
|
2.67
|
0.917
|
23.29
|
1131
|
1683.0
|
Dark Gray
|
LXE-444-2KV
|
LXE110024105
|
444MCM
|
1100/24
|
225
|
.105
|
2.67
|
1.042
|
26.46
|
1607
|
2391.4
|
Dark Gray
|
LXE-535-2KV
|
LXE132524120
|
535MCM
|
1325/24
|
271
|
.120
|
3.18
|
1.149
|
29.18
|
2000
|
2976.2
|
Dark Gray
|
LXE-592-2KV
|
|
597MCM
|
1480/24
|
303
|
.125
|
3.18
|
1.234
|
31.34
|
2200
|
3273.8
|
Dark Gray
|
