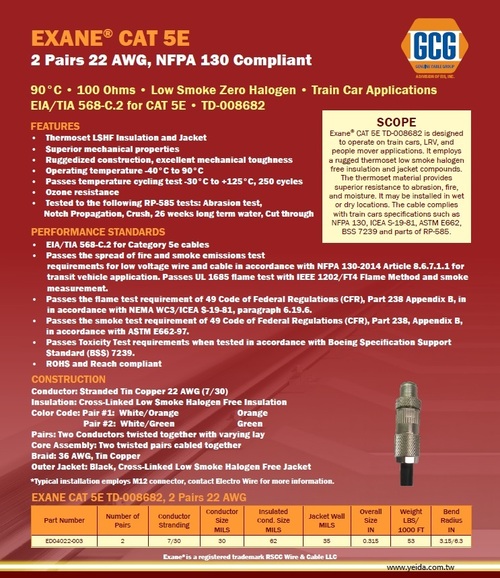

RSCC-Exane® CAT 5E 2 Pairs 22 AWG, 90°C 100 Ohms LSHF Train Car Cable 低煙無鹵火車列車專用Cat5e 2對網路電線
Scope
Exane® CAT 5E TD-008682 is designed to operate on train cars, LRV, and people mover applications. It employs a rugged thermoset low smoke halogen free insulation and jacket compounds. The thermoset material provides superior resistance to abrasion, fire, and moisture. It may be installed in wet or dry locations. The cable complies with train cars specifications such as NFPA 130, ICEA S-19-81, ASTM E662, BSS 7239 and parts of RP-585.
Features
• Thermoset LSHF Insulation and Jacket
• Superior mechanical properties
• Ruggedized construction, excellent mechanical toughness
• Operating temperature -40°C to 90°C
• Passes temperature cycling test -30°C to +125°C, 250 cycles
• Ozone resistance
• Tested to the following RP-585 tests: Abrasion test,
• Notch Propagation, Crush, 26 weeks long term water, Cut through
Performance Standards
• EIA/TIA 568-C.2 for Category 5e cables
• Passes the spread of fire and smoke emissions test requirements for low voltage wire and cable in accordance with NFPA 130-2014 Article 8.6.7.1.1 for transit vehicle application. Passes UL 1685 flame test with IEEE 1202/FT4 Flame Method and smoke measurement.
• Passes the flame test requirement of 49 Code of Federal Regulations (CFR), Part 238 Appendix B, in accordance with NEMA WC3/ICEA S-19-81, paragraph 6.19.6.
• Passes the smoke test requirement of 49 Code of Federal Regulations (CFR), Part 238, Appendix B, in accordance with ASTM E662-97.
• Passes Toxicity Test requirements when tested in accordance with Boeing Specification Support Standard (BSS) 7239.
• ROHS and Reach compliant
Construction
Conductor: Stranded Tin Copper 22 AWG (7/30)
Insulation: Cross-Linked Low Smoke Halogen Free Insulation
Color Code: Pair #1: White/Orange Orange
Pair #2: White/Green Green
Pairs: Two Conductors twisted together with varying lay
Core Assembly: Two twisted pairs cabled together
Braid: 36 AWG, Tin Copper
Outer Jacket: Black, Cross-Linked Low Smoke Halogen Free Jacket
*Typical installation employs M12 connector, contact Electro Wire for more information.
EXANE CAT 5E TD-008682, 2 Pairs 22 AWG
Part Number
|
Number of
Pairs
|
Conductor
Stranding
|
Conductor
Size
MILS
|
Insulated
Cond. Size
MILS
|
Jacket Wall
MILS
|
Overall
Size
IN
|
Weight
LBS/
1000 FT
|
Bend
Radius
IN
|
ED04022-003
|
2
|
7/30
|
30
|
62
|
35
|
0.315
|
53
|
3.15/6.3
|
Exane® is a registered trademark RSCC Wire & Cable LLC
