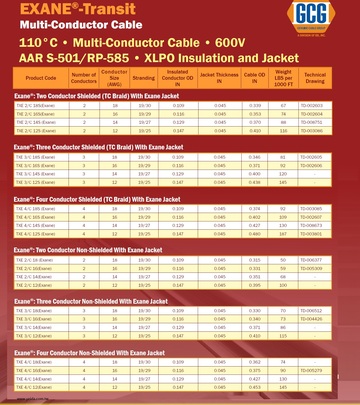

Exane®Transit 600V
Multi-Conductor Cable
110°C • Multi-Conductor Cable • 600V
AAR S-501/RP-585 • XLPO Insulation and Jacket
Scope
Exane® multiconductor transit cables are a rugged, flame retardant construction. They are suitable for installation indoors or outdoors in metals trays, conduit, underground duct, or for direct burial. The cables have excellent flexibility and resist crush, low temperature cracking, moisture and petrochemical fluids. The Exane® thermoset insulation system provides a conductor component with superior cut-through, abrasion resistance and electrical overload characteristics.
Features
• Wide temperature range -55°C to 110°C
• Thermoset Insulation and jacket
• Superior mechanical properties
• Flexible construction
• Flame retardant
• Excellent fluid/oil resistance
• Moisture and sunlight resistant
• Employs Exane 1068A insulated conductors
Performance Standards
• AAR S-501
• AAR RP-585
• ICEA S-66-524 (5-95-658)
• Passes the spread of fire and smoke emission in accordance with NFPA 130-2010 article 8.6.7.1.1 • FT4/IEEE 1202 with smoke per UL1685
• Passes UL VW-1 flame test
• Passes IEEE-383 1974 vertical tray flame test
• Meets requirements of 49 CFR Part 238 for flame and smoke requirements
• Meets transit toxicity requirements when tested in accordance with BSS 7239
Construction
Conductor: Annealed, Tinned copper per ASTM B33, B172, AAR S-501, and AAR RP-585
Insulation: Crosslinked polyolefin, Exane® (colors-as required)
Colors: As required
Binder: Polyester tape
Shields: Tin copper braid (optional)
Jacket: Cross-linked polyolefin Exane® Jacket
* RSCC rated 110°C
Product Code
|
Number of
Conductors
|
Conductor Size
(AWG)
|
Stranding
|
Insulated
Conductor OD
In
|
Jacket Thickness
In
|
Cable OD
In
|
Weight
LBS per
1000 Ft
|
Technical
Drawing
|
Exane®: Two Conductor Shielded (TC Braid) With Exane Jacket
|
TXE 2/C 18S(Exane)
|
2
|
18
|
19/30
|
0.109
|
0.045
|
0.339
|
67
|
TD-002603
|
TXE 2/C 16S(Exane)
|
2
|
16
|
19/29
|
0.116
|
0.045
|
0.353
|
74
|
TD-002604
|
TXE 2/C 14S (Exane)
|
2
|
14
|
19/27
|
0.129
|
0.045
|
0.370
|
88
|
TD-008751
|
TXE 2/C 12S (Exane)
|
2
|
12
|
19/25
|
0.147
|
0.045
|
0.410
|
116
|
TD-003086
|
Exane®: Three Conductor Shielded (TC Braid) With Exane Jacket
|
TXE 3/C 18S (Exane)
|
3
|
18
|
19/30
|
0.109
|
0.045
|
0.346
|
81
|
TD-002605
|
TXE 3/C 16S (Exane)
|
3
|
16
|
19/29
|
0.116
|
0.045
|
0.371
|
92
|
TD-002606
|
TXE 3/C 14S (Exane)
|
3
|
14
|
19/27
|
0.129
|
0.045
|
0.400
|
120
|
–
|
TXE 3/C 12S (Exane)
|
3
|
12
|
19/25
|
0.147
|
0.045
|
0.438
|
145
|
–
|
Exane®: Four Conductor Shielded (TC Braid) With Exane Jacket
|
TXE 4/C 18S (Exane)
|
4
|
18
|
19/30
|
0.109
|
0.045
|
0.374
|
92
|
TD-003085
|
TXE 4/C 16S (Exane)
|
4
|
16
|
19/29
|
0.116
|
0.045
|
0.402
|
109
|
TD-002607
|
TXE 4/C 14S (Exane)
|
4
|
14
|
19/27
|
0.129
|
0.045
|
0.427
|
130
|
TD-008673
|
TXE 4/C 12S (Exane)
|
4
|
12
|
19/25
|
0.147
|
0.045
|
0.480
|
187
|
TD-003801
|
Exane®: Two Conductor Non-Shielded With Exane Jacket
|
TXE 2/C 18 (Exane)
|
2
|
18
|
19/30
|
0.109
|
0.045
|
0.315
|
50
|
TD-006377
|
TXE 2/C 16(Exane)
|
2
|
16
|
19/29
|
0.116
|
0.045
|
0.331
|
59
|
TD-005309
|
TXE 2/C 14(Exane)
|
2
|
14
|
19/27
|
0.129
|
0.045
|
0.351
|
68
|
–
|
TXE 2/C 12(Exane)
|
2
|
12
|
19/25
|
0.147
|
0.045
|
0.395
|
100
|
–
|
Exane®: Three Conductor Non-Shielded With Exane Jacket
|
TXE 3/C 18(Exane)
|
3
|
18
|
19/30
|
0.109
|
0.045
|
0.330
|
70
|
TD-006512
|
TXE 3/C 16(Exane)
|
3
|
16
|
19/29
|
0.116
|
0.045
|
0.340
|
73
|
TD-004426
|
TXE 3/C 14(Exane)
|
3
|
14
|
19/27
|
0.129
|
0.045
|
0.371
|
86
|
–
|
TXE 3/C 12(Exane)
|
3
|
12
|
19/25
|
0.147
|
0.045
|
0.410
|
115
|
–
|
Exane®: Four Conductor Non-Shielded With Exane Jacket
|
TXE 4/C 18(Exane)
|
4
|
18
|
19/30
|
0.109
|
0.045
|
0.362
|
74
|
–
|
TXE 4/C 16(Exane)
|
4
|
16
|
19/29
|
0.116
|
0.045
|
0.375
|
90
|
TD-005279
|
TXE 4/C 14(Exane)
|
4
|
14
|
19/27
|
0.129
|
0.045
|
0.427
|
130
|
–
|
TXE 4/C 12(Exane)
|
4
|
12
|
19/25
|
0.147
|
0.045
|
0.453
|
145
|
–
|
