    ALPHA, EcoFlex® Awg(20, 18, 16) UL21492, UL21819, 600 V Flexing Control Cable 體積小, 重量輕, 可回收再利用, 環保型, 超柔軟, 控制電纜
    看原圖
    		ALPHA-79001

    ALPHA, EcoFlex® Awg(20, 18, 16) UL21492, UL21819, 600 V Flexing Control Cable  體積小, 重量輕, 可回收再利用, 環保型, 超柔軟, 控制電纜

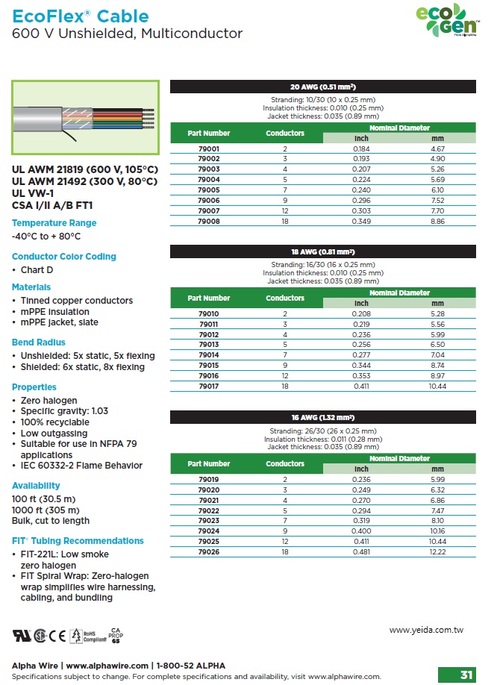

    EcoFlex® Cable
    600 V Unshielded, Multiconductor

    CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 21492,
    Alpha79001, Alpha79002, Alpha79003, Alpha79004, Alpha79005, Alpha79006, Alpha79007, Alpha79010, Alpha79011, Alpha79012, Alpha79013, Alpha79014, Alpha79015, Alpha79016, Alpha79019, Alpha79020, Alpha79021, Alpha79023, Alpha79024, Alpha79025, Alpha79026,

    UL AWM 21819

    UL AWM 21819 (600 V, 105°C)
    UL AWM 21492 (300 V, 80°C)
    UL VW-1
    CSA I/II A/B FT1
    Temperature Range
    -40°C to + 80°C
    Conductor Color Coding
    • Chart D
    Materials
    • Tinned copper conductors
    • mPPE insulation
    • mPPE jacket, slate
    Bend Radius
    • Unshielded: 5x static, 5x flexing
    • Shielded: 6x static, 8x flexing
    Properties
    • Zero halogen
    • Specific gravity: 1.03
    • 100% recyclable
    • Low outgassing
    • Suitable for use in NFPA 79
    applications
    • IEC 60332-2 Flame Behavior
    Availability
    100 ft (30.5 m)
    1000 ft (305 m)
    Bulk, cut to length
    FIT® Tubing Recommendations
    • FIT-221L: Low smoke
    zero halogen
    • FIT Spiral Wrap: Zero-halogen
    wrap simplifies wire harnessing,
    cabling, and bundling

    Part # AWG Stranding Construction Type # of Elements Shielding Jacket Diameter Temperature Range Voltage
    79001 20  10/30  COND  2  UNSHIELDED  0.184  -40 to 105  600
    79002 20  10/30  COND  3  UNSHIELDED  0.193  -40 to 105  600
    79003 20  10/30  COND  4  UNSHIELDED  0.207  -40 to 105  600
    79004 20  10/30  COND  5  UNSHIELDED  0.224  -40 to 105  600
    79005 20  10/30  COND  7  UNSHIELDED  0.24  -40 to 105  600
    79006 20  10/30  COND  9  UNSHIELDED  0.296  -40 to 105  600
    79007 20  10/30  COND  12  UNSHIELDED  0.303  -40 to 105  600
    79008 20  10/30  COND  18  UNSHIELDED  0.349  -40 to 105  600
    79010 18  16/30  COND  2  UNSHIELDED  0.208  -40 to 105  600
    79011 18  16/30  COND  3  UNSHIELDED  0.219  -40 to 105  600
    79012 18  16/30  COND  4  UNSHIELDED  0.236  -40 to 105  600
    79013 18  16/30  COND  5  UNSHIELDED  0.256  -40 to 105  600
    79014 18  16/30  COND  7  UNSHIELDED  0.277  -40 to 105  600
    79015 18  16/30  COND  9  UNSHIELDED  0.344  -40 to 105  600
    79016 18  16/30  COND  12  UNSHIELDED  0.353  -40 to 105  600
    79017 18  16/30  COND  18  UNSHIELDED  0.411  -40 to 105  600
    79019 16  26/30  COND  2  UNSHIELDED  0.236  -40 to 105  600
    79020 16  26/30  COND  3  UNSHIELDED  0.249  -40 to 105  600
    79021 16  26/30  COND  4  UNSHIELDED  0.27  -40 to 105  600
    79022 16  26/30  COND  5  UNSHIELDED  0.294  -40 to 105  600
