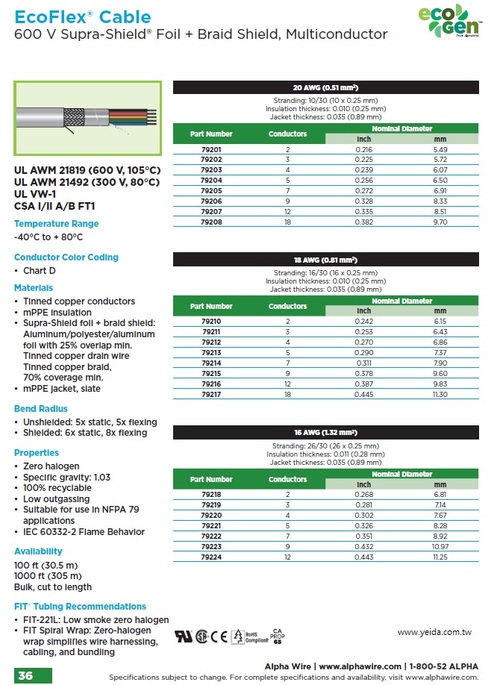

    ALPHA-EcoFlex®600V, mPPE, Supra-Shield® Foil + Braid Shield, Multiconductor, Flexing recyclable Control Cable 小外徑, 質量輕, 可回收再利用, 環境友善型, 超柔軟鋁箔+銅網屏蔽隔離控制電纜 (超過100萬次撓曲壽命)
    看原圖
    		ALPHA-79201

    ALPHA-EcoFlex® Rated for over 1 million flex life cycles (Awg20, 18, 16) UL21819, UL21492, 600V, mPPE, Supra-Shield® Foil + Braid Shield, Multiconductor, Flexing recyclable Control Cable 小外徑, 質量輕, 可回收再利用, 環境友善型, 超柔軟鋁箔+銅網屏蔽隔離控制電纜 (額定撓曲壽命超過100萬次)

    EcoFlex is the latest innovation in flexible control cable. Up to 32% smaller and 55% lighter than traditional PVC flexible Control cable, EcoFlex also offers up to 91% lower outgassing in a fully recyclable cable.

    UL AWM 21819 (600 V, 105°C)
    UL AWM 21492 (300 V, 80°C)
    UL VW-1
    CSA I/II A/B FT1
    Temperature Range
    -40°C to + 80°C
    Conductor Color Coding
    • Chart D
    Materials
    • Tinned copper conductors
    • mPPE insulation
    • Supra-Shield foil + braid shield:
    Aluminum/polyester/aluminum
    foil with 25% overlap min.
    Tinned copper drain wire
    Tinned copper braid,
    70% coverage min.
    • mPPE jacket, slate
    Bend Radius
    • Unshielded: 5x static, 5x flexing
    • Shielded: 6x static, 8x flexing
    Properties
    • Zero halogen
    • Specific gravity: 1.03
    • 100% recyclable
    • Low outgassing
    • Suitable for use in NFPA 79
    applications
    • IEC 60332-2 Flame Behavior

    Availability
    100 ft (30.5 m)
    1000 ft (305 m)
    Bulk, cut to length
    FIT® Tubing Recommendations
    • FIT-221L: Low smoke
    zero halogen
    • FIT Spiral Wrap: Zero-halogen
    wrap simplifies wire harnessing,
    cabling, and bundling



    Part # AWG Stranding Construction Type # of Elements Shielding Jacket Diameter Temperature Range Voltage
    79201 20  10/30  COND  2  SupraShield (Premium Foil/Braid)  0.216  -40 to 105  600
    79202 20  10/30  COND  3  SupraShield (Premium Foil/Braid)  0.225  -40 to 105  600
    79203 20  10/30  COND  4  SupraShield (Premium Foil/Braid)  0.239  -40 to 105  600
    79204 20  10/30  COND  5  SupraShield (Premium Foil/Braid)  0.256  -40 to 105  600
    79205 20  10/30  COND  7  SupraShield (Premium Foil/Braid)  0.272  -40 to 105  600
    79206 20  10/30  COND  9  SupraShield (Premium Foil/Braid)  0.328  -40 to 105  600
    79207 20  10/30  COND  12  SupraShield (Premium Foil/Braid)  0.335  -40 to 105  600
    79208 20  10/30  COND  18  SupraShield (Premium Foil/Braid)  0.382  -40 to 105  600
    79210 18  16/30  COND  2  SupraShield (Premium Foil/Braid)  0.242  -40 to 105  600
    79211 18  16/30  COND  3  SupraShield (Premium Foil/Braid)  0.253  -40 to 105  600
    79212 18  16/30  COND  4  SupraShield (Premium Foil/Braid)  0.27  -40 to 105  600
    79213 18  16/30  COND  5  SupraShield (Premium Foil/Braid)  0.29  -40 to 105  600
    79214 18  16/30  COND  7  SupraShield (Premium Foil/Braid)  0.311  -40 to 105  600
    79215 18  16/30  COND  9  SupraShield (Premium Foil/Braid)  0.378  -40 to 105  600
    79216 18  16/30  COND  12  SupraShield (Premium Foil/Braid)  0.387  -40 to 105  600
    79217 18  16/30  COND  18  SupraShield (Premium Foil/Braid)  0.445  -40 to 105  600
    79218 16  26/30  COND  2  SupraShield (Premium Foil/Braid)  0.268  -40 to 105  600
    79219 16  26/30  COND  3  SupraShield (Premium Foil/Braid)  0.281  -40 to 105  600
    79220 16  26/30  COND  4  SupraShield (Premium Foil/Braid)  0.302  -40 to 105  600
    79221 16  26/30  COND  5  SupraShield (Premium Foil/Braid)  0.326  -40 to 105  600
    CA Prop 65, CE, CSA AWM I/II A/B, CSA FT1, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 21492, UL AWM 21819, UL VW-1
