    首頁 > > ALPHA-EcoCable® Mini 小體積薄外徑電纜

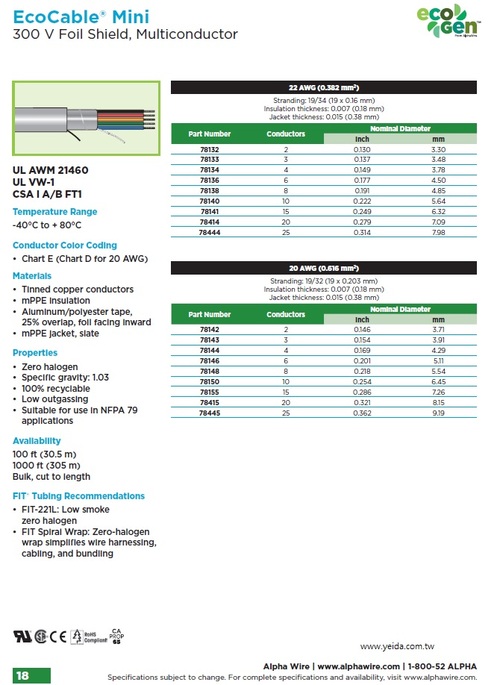

    Alpha-EcoCable® Mini, 300V Foil Shield, mPPE, smaller, lighter,Recyclable Cable 體積小, 重量輕, 可回收再利用, 環保型, 超迷你多心鋁箔屏蔽隔離訊號控制電纜(Awg22, Awg20)
    看原圖
    		ALPHA-78132

    ALPHA-78132
    Alpha, EcoCable® Mini, 300V Foil Shield, mPPE, Multiconductor, smaller, lighter,Recyclable Cable 體積小, 重量輕, 可回收再利用, 環保型, 超迷你多心鋁箔屏蔽隔離訊號控制電纜(Awg22, Awg20)

    CA Prop 65, CE, CSA - FT1, CSA AWM I A/B, REACH Regulation (EC 1907/2006), ROHS - RoHS Compliance, UL AWM 21460, UL VW-1

    (Alpha78132, Alpha78133, Alpha78134, Alpha78136, Alpha78140, Alpha78414, Alpha78444,
    Alpha78142, Alpha78143,Alpha78144,Alpha78146, Alpha78148, Alpha78150, Alpha78155, Alpha78415,

    Alpha78445,)

    EcoCable® Mini is the next generation of 300 V cables. By combining better performance and minimum environmental impact, EcoCable Mini uses its mPPE insulation and jacketing to provide all of the advantages in a smaller, lighter cable.

    UL AWM 21460
    UL VW-1
    CSA I A/B FT1
    Temperature Range
    -40°C to + 80°C
    Conductor Color Coding
    • Chart E (Chart D for 20 AWG)
    Materials
    • Tinned copper conductors
    • mPPE insulation
    • Aluminum/polyester tape,
    25% overlap, foil facing inward
    • mPPE jacket, slate
    Properties
    • Zero halogen
    • Specific gravity: 1.03
    • 100% recyclable
    • Low outgassing
    • Suitable for use in NFPA 79
    applications
    Availability
    100 ft (30.5 m)
    1000 ft (305 m)
    Bulk, cut to length
    FIT® Tubing Recommendations
    • FIT-221L: Low smoke
    zero halogen
    • FIT Spiral Wrap: Zero-halogen
    wrap simplifies wire harnessing,
    cabling, and bundling

    Part # AWG Stranding Construction Type # of Elements Shielding Jacket Diameter Temperature Range Voltage
    78140 22  19/34  COND  10  FOIL  0.222  -40 to 80  300
    78141 22  19/34  COND  15  FOIL  0.249  -40 to 80  300
    78150 20  19/32  COND  10  FOIL  0.254  -40 to 80  300
    78155 20  19/32  COND  15  FOIL  0.286  -40 to 80  300
    78414 22  19/34  COND  20  FOIL  0.279  -40 to 80  300
    78415 20  19/32  COND  20  FOIL  0.321  -40 to 80  300
    78444 22  19/34  COND  25  FOIL  0.314  -40 to 80  300
    78445 20  19/32  COND  25  FOIL  0.362  -40 to 80  300
    78419 22  19/34  PAIR  20  FOIL  0.433  -40 to 80  300
    78420 20  19/32  PAIR  20  FOIL  0.502  -40 to 80  300
    78449 22  19/34  PAIR  25  FOIL  0.491  -40 to 80  300
    78450 20  19/32  PAIR  25  FOIL  0.569  -40 to 80  300
    78132 22  19/34  COND  2  FOIL  0.13  -40 to 80  300
    78133 22  19/34  COND  3  FOIL  0.137  -40 to 80  300
    78134 22  19/34  COND  4  FOIL  0.149  -40 to 80  300
    78135 22  19/34  PAIR  5  FOIL  0.243  -40 to 80  300
    78136 22  19/34  COND  6  FOIL  0.177  -40 to 80  300
    78138 22  19/34  COND  8  FOIL  0.191  -40 to 80  300
    78139 22  19/34  PAIR  9  FOIL  0.313  -40 to 80  300
    78142 20  19/32  COND  2  FOIL  0.146  -40 to 80  300
