VAD-G10800C2 工業級 10埠 全Gigabit 乙太網路 PoE交換機
- 遵守國際規範與認證
- 每埠供電過載保護與自動回復功能,無需跑現場
- 75℃型錄溫度經由85℃環溫測試通過而定,全機零組件優異
- 連接任何PoE與非PoE網路設備,受電端非PoE設備不送電,安全無虞
- 讓品質取代維護成本
特點

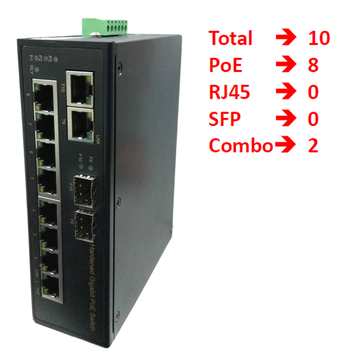

- 10埠功能分配:8 PoE + 2 Combo
- Switch模式支援12~56VDC備援型雙電源輸入
- POE模式支援48~56VDC備援型雙電源輸入
- 電源告警偵測與輸出
- 每埠PSE最高輸出36W
- 完善的電源管理
- 功耗檢測與分類,高電源效率
- 過流、短路保護、即時熱監測與保護
- PSE與PD間即時監控電壓、電流、功率及配置狀態
- 傳輸速率自動偵測
- 全雙工/半雙工自動偵測
- 自動MDI/MDI-X連線
- 具備Store-and-Forward功能
- 鋁合金外殼,符合IP30防護等級
- 背板頻寬:21Gbps.
- -40 to 75°C 寬工作溫度範圍
- 台灣設計、生產、組裝、測試
- 符合CE、FCC安規標準
技術資訊
標準 |
IEEE 802.3 for 10BaseT,
IEEE 802.3u for 100BaseT(X)/FX,
IEEE 802.3ab for 1000BaseT(X),
IEEE 802.3af/at for PoE/PoE+ output,
IEEE 802.3x for flow control,
IEEE 802.3z for 1000BaseX |
傳輸型態 |
Store and Forward |
MAC活動紀錄 |
16K |
封包緩衝記憶體 |
2 Mbits |
支援巨大封包 |
10K Bytes |
介面
Gigabit總埠數
PoE 功能埠
RJ45(無 PoE) |
10 x 10/100/1000BaseT(X)
8 x RJ45, P1~P8@10/100/1000BaseT(X)
- |
光纖埠 |
- |
Combo RJ45/SFP |
P9/SFP1 + P10/SFP2 (SFP需另購) |
警報輸出 |
Pin5, Pin6@6-Pin工業端子台,警報關閉時為NO狀態, 警報啟動時為NC狀態 |
LEDs |
2 x Power input LED@ Green, LED ON for power input is active
1 x Alarm LED@ Amber, LED ON for alarm is active
8 x PoE Active LED@ Amber, LED ON for PSE is active
10 x 10/100/1000BaseT SPD LED@ Green, LED ON for 1000BaseT(X) is active
10 x 10/100/1000 Link/ACT LED@ Green, LED ON/Flash for transmission is Link/Active
2 x Optical Link/Act LED@ Green, LED ON/Flash for optical fiber is Link/Active |
PoE
PSE腳位分配 |
V+, V+, V-, V-分佈於1, 2, 3, 6腳 (endspan) |
工作電壓 |
48~56VDC 輸入及輸出 |
輸出最大總功率 |
240W |
每埠輸出功率
電源管理 |
15.4W(af)/30W(at)
PD偵測、供電設定、功率分配、電壓偵測、過流保護 |
電源需求
電源輸入範圍 |
12~56VDC, Redundancy Dual Power input |
PoE啟動電壓 |
48~56VDC |
PoE 輸出管理 |
30W/Port, Max. 240W |
PoE功能關閉工作電壓 |
12~38VDC |
無PoE功能電源需求 |
10W Max. |
電源 1 輸入接頭
電源 2 輸入接頭
警報輸出接頭 |
Pin 1& Pin 2 of 6-contact terminal block
Pin 3& Pin 4 of 6-contact terminal block
Pin 5& Pin 6 of 6-contact terminal block |
機械特性
尺寸(mm) |
120(W) x 48(D) x 155(H) |
機殼 |
IP 30 metal case |
重量 |
600g |
安裝方式 |
Din-Rail mounting |
環境特性
工作溫度 |
-40~75℃ |
工作濕度 |
5~95%(non-condensing) |
儲存溫度 |
-40~85℃ |
儲存濕度 |
0~95%(non-condensing) |
安規標準
EMC |
FCC part 15 subpart B Class A,
CE: EMI: Class A, EN 55032:2012/AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013
EMS: EN 55024:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010. EN 61000-4-11:2004 |
Shock |
IEC 60068-2-27 |
Vibration |
IEC 60068-2-6 |
Free Fall |
IEC-60068-2-32 |
採購資訊
G10800C2 |
工業級10-port Gigabit乙太網路交換機, 8 路PoE + 2組Combo, -40℃~+75℃ |
SFP |
Singlemode 單模光纖 |
S3D12510XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 10km, 0~70℃ |
S3D12520XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 20km, 0~70℃ |
S3D12530XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 30km, 0~70℃ |
S3D12540XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 40km, 0~70℃ |
IS3D12510XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 10km, -40~85℃ |
IS3D12520XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 20km, -40~85℃ |
IS3D12530XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 30km, -40~85℃ |
IS3D12540XX |
SFP, 1000M, duplex 2-fiber, LC, SM, 40km, -40~85℃ |
SAD12510XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 10km, 0~70℃ |
SBD12510XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 10km, 0~70℃ |
SAD12520XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 20km, 0~70℃ |
SBD12520XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 20km, 0~70℃ |
SAD12530XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 30km, 0~70℃ |
SBD12530XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 30km, 0~70℃ |
SAD12540XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 40km, 0~70℃ |
SBD12540XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 40km, 0~70℃ |
ISAD12510XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 10km, -40~85℃ |
ISBD12510XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 10km, -40~85℃ |
ISAD12520XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 20km, -40~85℃ |
ISBD12520XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 20km, -40~85℃ |
ISAD12530XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 30km, -40~85℃ |
ISBD12530XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 30km, -40~85℃ |
ISAD12540XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T13/R15, 40km, -40~85℃ |
ISBD12540XX |
SFP, 1000M, duplex 1-fiber, LC, SM, T15/R13, 40km, -40~85℃ |
SFP |
Multimode 多模光纖 |
M2D12505XX |
SFP, 1000M, duplex 2-fiber, LC, MM, OM2, 550m, 0~70℃ |
M3D12500XX |
SFP, 1000M, duplex 2-fiber, LC, MM, OM3, 1km, 0~70℃ |
IM2D12505XX |
SFP, 1000M, duplex 2-fiber, LC, MM, OM2, 550m, -40~85℃ |
IM3D12500XX |
SFP, 1000M, duplex 2-fiber, LC, MM, OM3, 1km, -40~85℃ |
