    Belden3079A Paired - DataBus® ISA/SP-50 PROFIBUS Cable 自動化工業電腦Profibus控制資料傳輸線
    看原圖
    		BELDEN-3079A


    商品編號: Belden-3079A,

    Belden-3079A Paired - DataBus® ISA/SP-50 PROFIBUS Cable 自動化工業電腦 Profibus 控制資料傳輸線

    22 AWG solid bare copper conductors, FHDPE insulation, Beldfoil® (100% coverage) plus a tinned copper braid shield (65% coverage), PVC jacket

    3079A

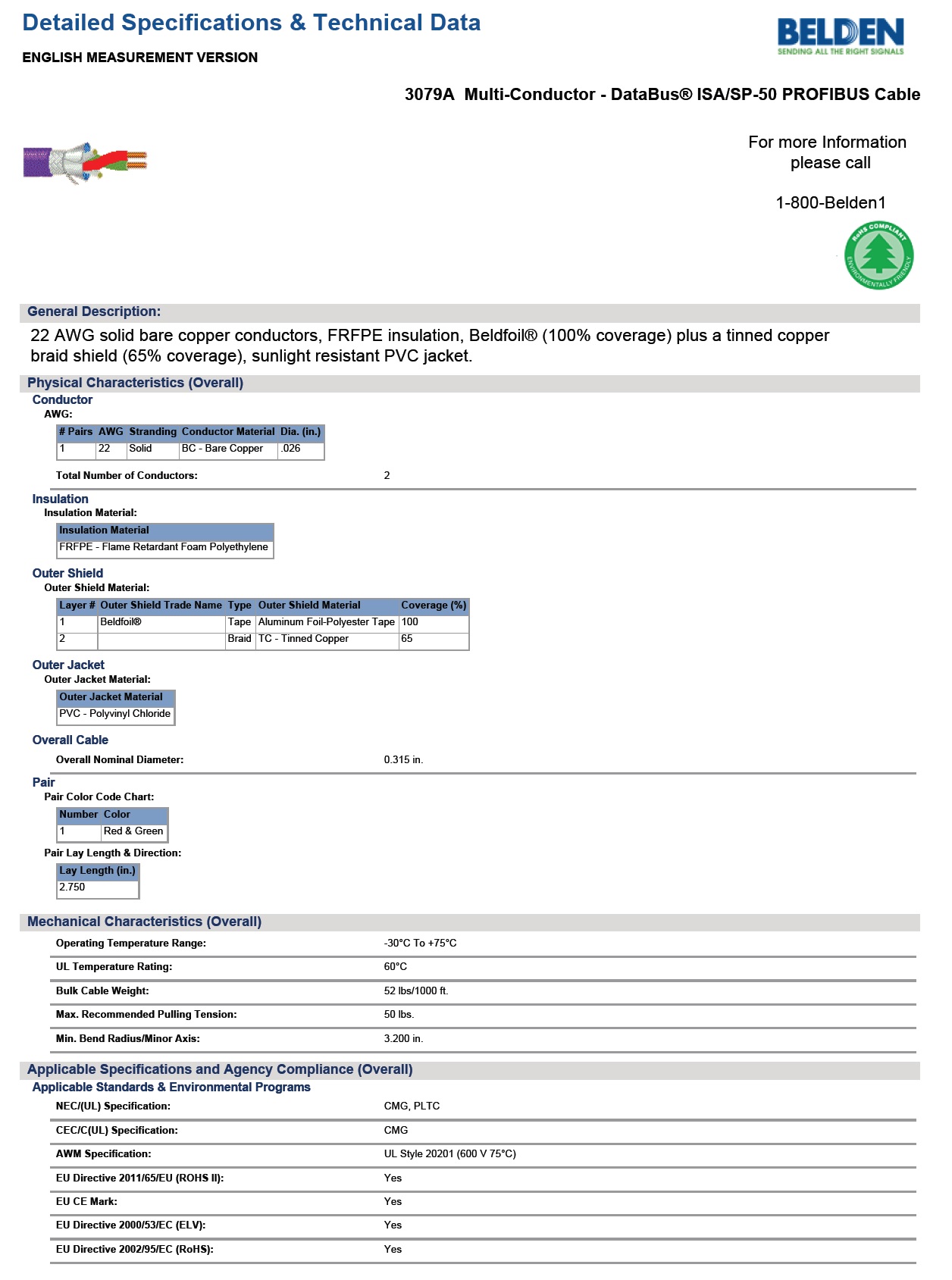

    		    Multi-Conductor - DataBus® ISA/SP-50 PROFIBUS Cable

    22 AWG solid bare copper conductors, FHDPE insulation, Beldfoil® (100% coverage) plus a tinned copper braid shield (65% coverage), sunlight resistant PVC jacket.




    Physical Characteristics (Overall) Conductor AWG:
    # Pairs AWG Stranding Conductor Material Dia. (mm)
    1 22 Solid BC - Bare Copper 0.6604

    Insulation Insulation Material:
    FRFPE - Flame Retardant Foam Polyethylene

    Outer Jacket Material:
    Outer Jacket Material PVC - Polyvinyl Chloride

    Overall Nominal Diameter: 8.001 mm


    Number     Color
    1    Red & Green


    Mechanical Characteristics (Overall)
    Operating Temperature Range: -30°C To +75°C
    UL Temperature Rating: 60°C
    Bulk Cable Weight: 77.386 Kg/Km
    Max. Recommended Pulling Tension: 222.410 N
    Min. Bend Radius/Minor Axis: 81.280 mm

    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMG, PLTC
    CEC/C(UL) Specification: CMG
    AWM Specification: UL Style 20201 (600 V 75°C)
    EU Directive 2011/65/EU (ROHS II): Yes
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes

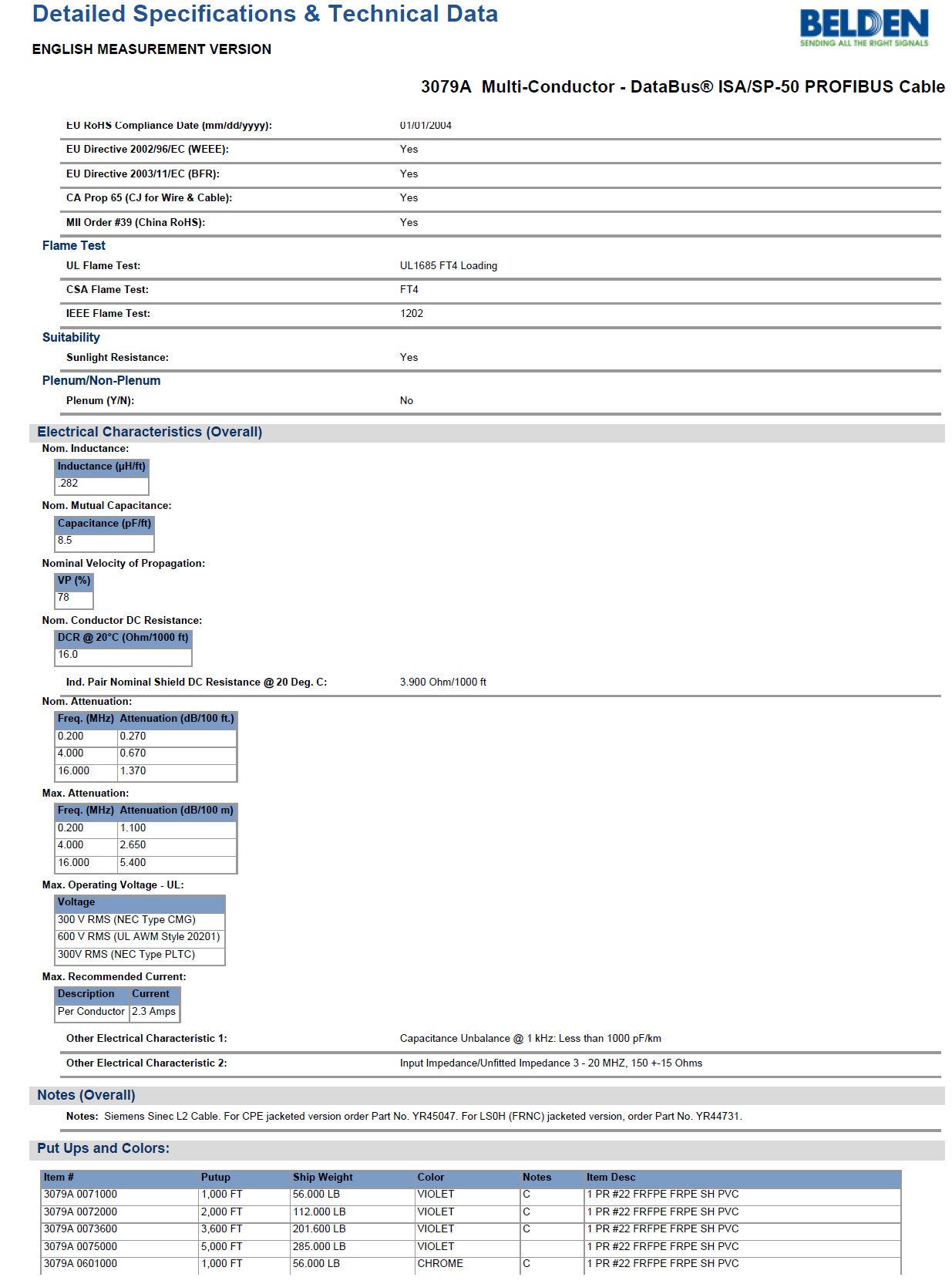

    BELDEN3079A Multi-Conductor - DataBus® ISA/SP-50 PROFIBUS Cable


    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes Flame Test UL
    Flame Test: UL1685 FT4 Loading
    CSA Flame Test: FT4
    IEEE Flame Test: 1202
