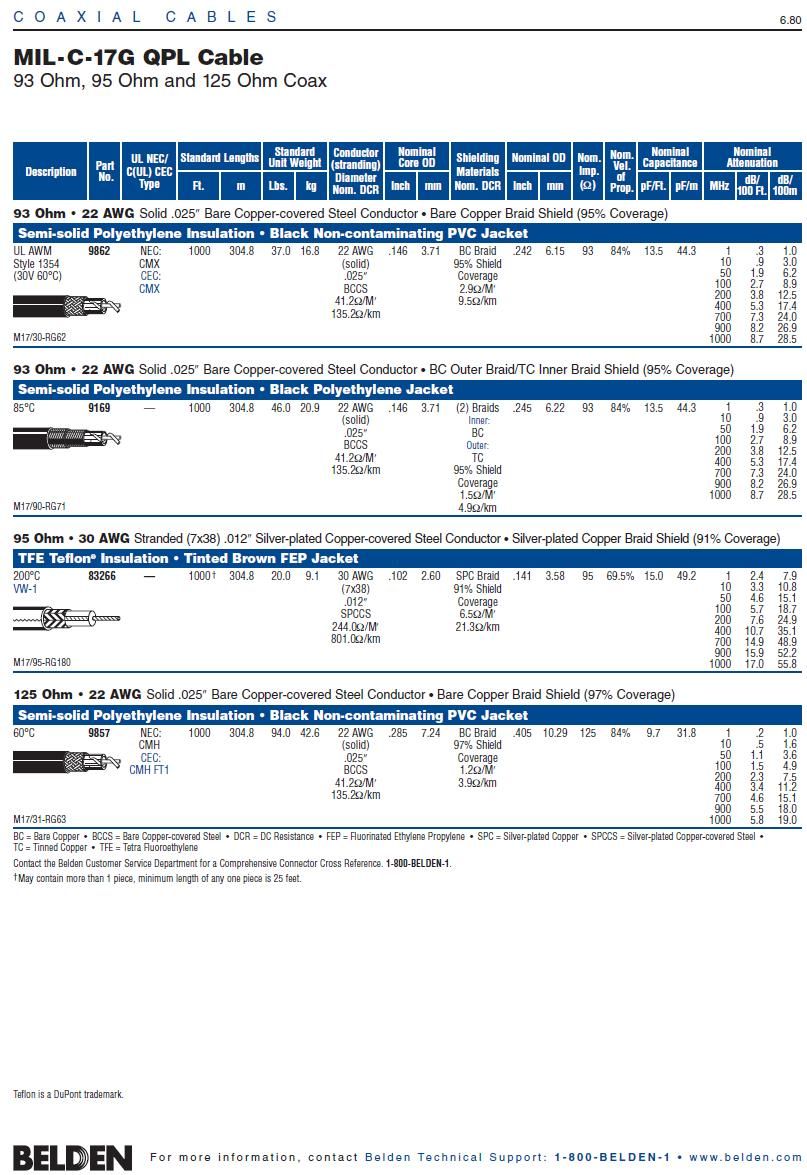

    Belden 9169 RG-71/U 93 Ohm Coaxial PE MIL軍規同軸電纜
    看原圖
    		463447

    商品編號: Belden-9169

    Belden 9169  RG-71/U  93 Ohm Coaxial PE MIL軍規同軸電纜

    93 ohm, 22 AWG solid .025" bare copper-covered steel conductor, semi-solid polyethylene insulation, BC outer braid/TC inner braid shield (95% coverage), polyethylene jacket.

    Coax - 93 Ohm Coax
    93 ohm, 22 AWG solid .025" bare copper-covered steel conductor, semi-solid polyethylene insulation, BC outer braid/TC inner braid shield (95% coverage), polyethylene jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Coax AWG Stranding Conductor Material Dia. (in.)
    1 22 Solid BCCS - Bare Copper Covered Steel .025
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    Semi-Solid PE - Semi-Solid Polyethylene .146
    Outer Shield
    Outer Shield Material:
    Layer # Type Outer Shield Material Coverage (%)
    1 Braid BC - Bare Copper 95
    2 Braid TC - Tinned Copper 95
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PE - Polyethylene
    Overall Cabling
    Overall Nominal Diameter: 0.245 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -55°C To +80°C
    Non-UL Temperature Rating: 85°C
    Bulk Cable Weight: 42 lbs/1000 ft.
    Max. Recommended Pulling Tension: 128 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.500 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: No
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: M17/90-RG71, MIL-CL17G
    RG Type: 71/U
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    93
    Nom. Inductance:
    Inductance (µH/ft)
    .12
    Nom. Capacitance Conductor to Shield:
    Capacitance (pF/ft)
    13.5
    Nominal Velocity of Propagation:
    VP (%)
    84
    Nominal Delay:
    Delay (ns/ft)
    1.21
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    41.2
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    1.5
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1 .3
    10 .9
    50 1.9
    100 2.7
    200 3.8
    400 5.3
    700 7.3
    900 8.2
    1000 8.7
