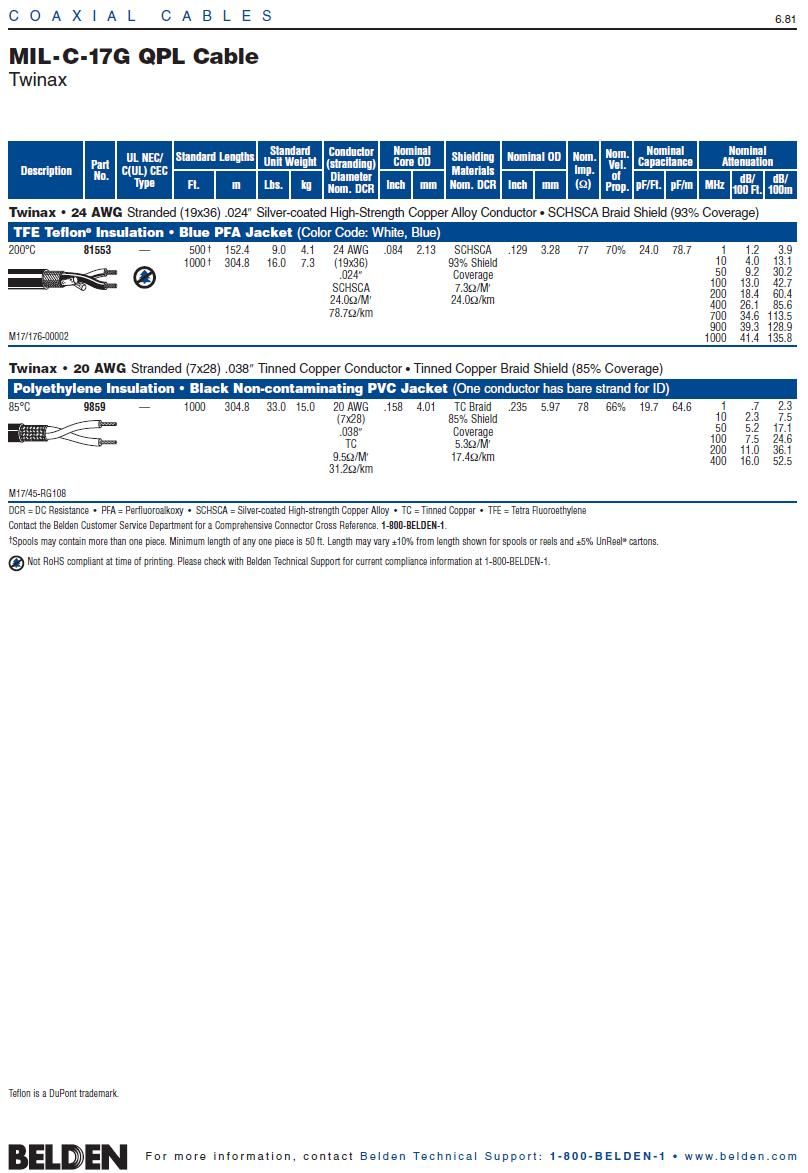

    Belden 9859 MIL-C-17G M17/45-RG108 Twinax NCPVCMIL軍規雙芯同軸電纜
    看原圖
    		463595

    商品編號: Belden-9859

    Belden 9859  MIL-C-17G M17/45-RG108  Twinax NCPVCMIL軍規雙芯同軸電纜

    Twinax, 20 AWG Stranded (7x28) .038" tinned copper conductor, polyethylene insulation, tinned copper braid shield (85% coverage), non-contaminating PVC jacket.

    9859
    		    Twinax - Twinax
    Twinax, 20 AWG Stranded (7x28) .038" tinned copper conductor, polyethylene insulation, tinned copper braid shield (85% coverage), non-contaminating PVC jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    9859 0101000 1,000 FT 33.000 LB BLACK 　 M17/45-RG108 TWINAX,
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material Dia. (in.)
    1 20 7x28 TC - Tinned Copper .038
    Insulation
    Insulation Material:
    Insulation Material Dia. (in.)
    PE - Polyethylene .158
    Outer Shield
    Outer Shield Material:
    Type Outer Shield Material Coverage (%)
    Braid TC - Tinned Copper 85
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Material
    PVCNC - Polyvinyl Chloride Non-Contaminating
    Overall Cabling
    Overall Nominal Diameter: 0.235 in.
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -40°C To +85°C
    Non-UL Temperature Rating: 85°C
    Bulk Cable Weight: 35 lbs/1000 ft.
    Max. Recommended Pulling Tension: 58 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2.500 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    EU CE Mark: No
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 10/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-C-17G M17/45-RG108
    RG Type: 108/U
    Plenum/Non-Plenum
    Plenum (Y/N): No
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    78
    Nom. Inductance:
    Inductance (µH/ft)
    .119
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    19.7
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    45.1
    Nominal Velocity of Propagation:
    VP (%)
    66
    Nominal Delay:
    Delay (ns/ft)
    1.54
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    9.5
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    5.3
    Nom. Attenuation:
    Freq. (MHz) Attenuation (dB/100 ft.)
    1 .7
    10 2.3
    50 5.2
    100 7.5
    200 11.0
    400 16.0
    Max. Operating Voltage - Non-UL:
    Voltage
    750 V RMS
    Notes (Overall)
    Notes: One conductor has a bare copper strand for identification.
