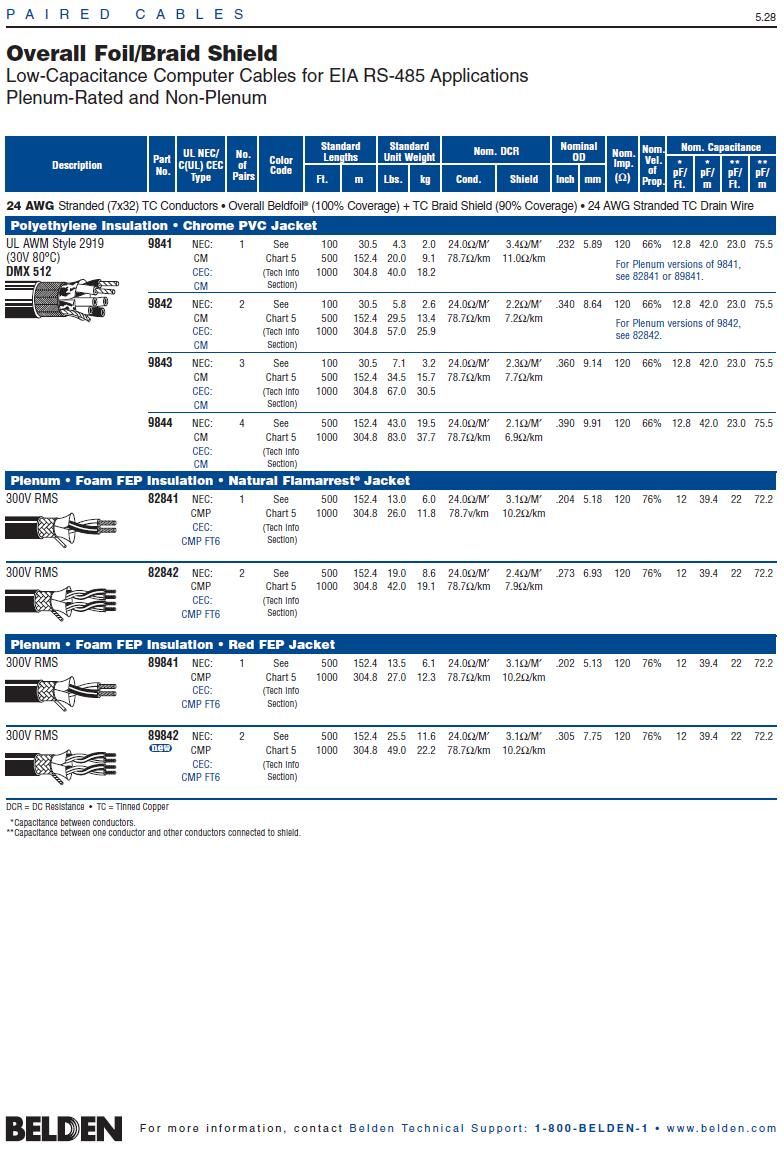

    Belden-89841 Paired - Low Capacitance Computer and Computer P.O.S. Cable FEP 鐵氟龍 plenum 電腦傳輸電線
    看原圖
    		471920


    商品編號: Belden89841

    89841 Paired - Low Capacitance Computer and Computer P.O.S. Cable     FEP 鐵氟龍 plenum 電腦傳輸電線

    89841
    		    Multi-Conductor - Low Capacitance Computer and Computer P.O.S. Cable
    Low cap 24 AWG stranded (7x32) TC conductors, plenum, foam FEP insulation, twisted pairs, overall Beldfoil (100% coverage) + TC braid shield (90% coverage), 24 AWG stranded TC drain wire, FEP jacket.    		 For more Information
    please call

    1-800-Belden1
    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    89841 0021000 1,000 FT 27.000 LB RED C 1 PR #24 FFEPR SH FEP
    89841 002500 500 FT 13.500 LB RED 　 1 PR #24 FFEPR SH FEP
    Notes: 　
    C = CRATE REEL PUT-UP.
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Pairs AWG Stranding Conductor Material
    1 24 7x32 TC - Tinned Copper
    Insulation
    Insulation Material:
    Insulation Trade Name Insulation Material
    Teflon® FFEP - Foam Fluorinated Ethylene Propylene
    Outer Shield
    Outer Shield Material:
    Layer # Outer Shield Trade Name Type Outer Shield Material Coverage (%)
    1 Beldfoil® Tape Aluminum Foil-Polyester Tape 100
    2   Braid TC - Tinned Copper 90
    Outer Shield Drain Wire AWG:
    AWG Stranding Drain Wire Conductor Material
    24 7x32 TC - Tinned Copper
    Outer Jacket
    Outer Jacket Material:
    Outer Jacket Trade Name Outer Jacket Material
    Teflon® FEP - Fluorinated Ethylene Propylene
    Overall Cabling
    Overall Nominal Diameter: 0.202 in.
    Pair
    Pair Color Code Chart:
    Number Color
    1 White/Blue & Blue/White
    Pair Lay Length & Direction:
    Lay Length (in.) Twists/ft. (twist/ft)
    2.000 6.000
    Mechanical Characteristics (Overall)
    Operating Temperature Range: -70°C To +200°C
    UL Temperature Rating: 150°C
    Non-UL Temperature Rating: 200°C
    Bulk Cable Weight: 32 lbs/1000 ft.
    Max. Recommended Pulling Tension: 45.700 lbs.
    Min. Bend Radius (Install)/Minor Axis: 2 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    NEC/(UL) Specification: CMP
    CEC/C(UL) Specification: CMP
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Flame Test
    UL Flame Test: NFPA 262
    C(UL) Flame Test: FT6
    Plenum/Non-Plenum
    Plenum (Y/N): Yes
    Non-Plenum Number: 9841
    Electrical Characteristics (Overall)
    Nom. Characteristic Impedance:
    Impedance (Ohm)
    120
    Nom. Capacitance Conductor to Conductor:
    Capacitance (pF/ft)
    12
    Nom. Capacitance Cond. to Other Conductor & Shield:
    Capacitance (pF/ft)
    22
    Nominal Velocity of Propagation:
    VP (%)
    76
    Nom. Conductor DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    24
    Nominal Outer Shield DC Resistance:
    DCR @ 20°C (Ohm/1000 ft)
    3.1
    Max. Operating Voltage - UL:
    Voltage
    300 V RMS
    Max. Recommended Current:
    Current
    4 Amps per conductor @ 25°C
