Belden 8760 UL/2092 PE-PVC Awg18 x 1Paired Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離聲音音響, 儀表控制電纜

453026

商品編號: Belden-8760

Belden 8760 UL/2092 PE-PVC Awg18 x 1Paired Overall Beldfoil® Shield Audio, Control and Instrumentation Cables 鋁箔隔離聲音音響, 儀表控制電纜

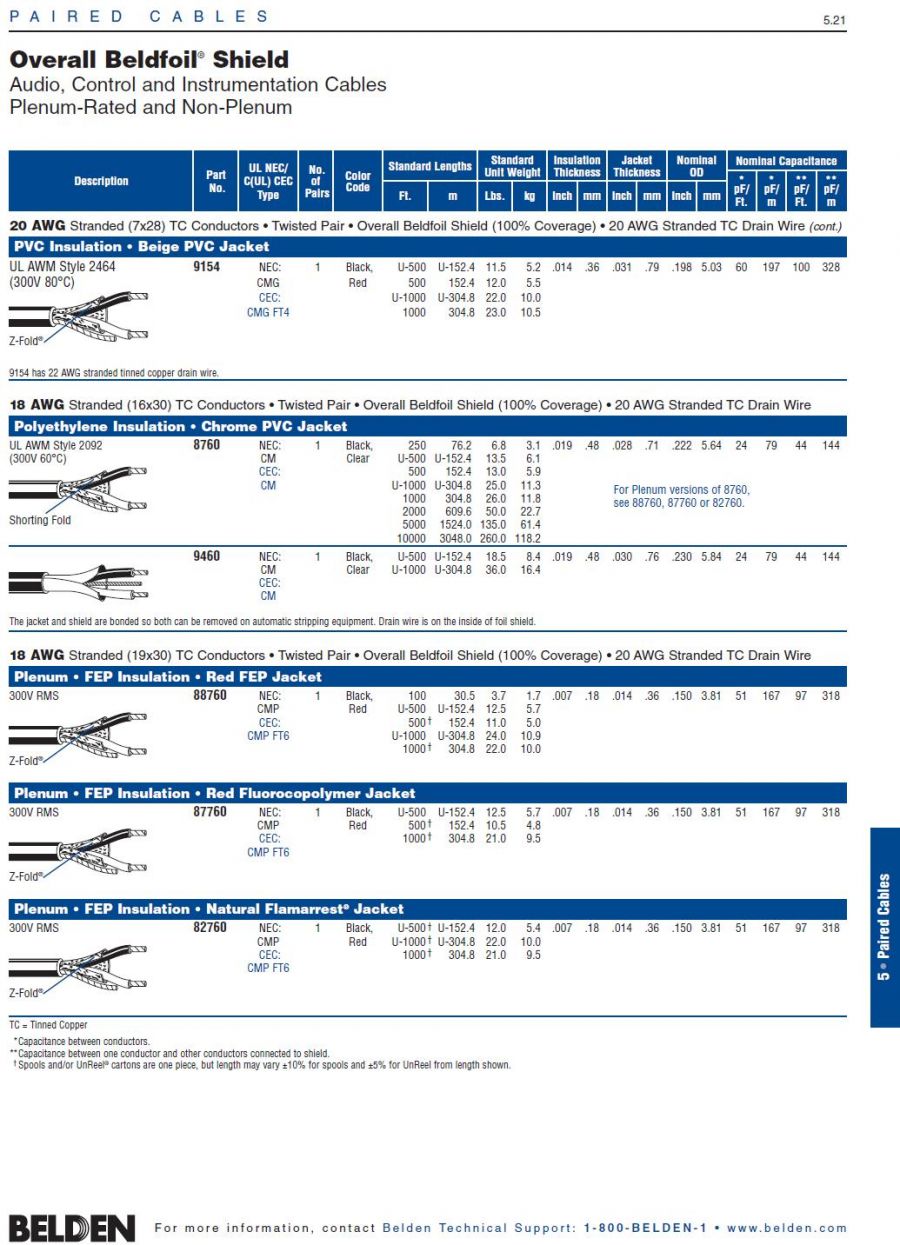

18 AWG stranded (16x30) tinned copper conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield (100% coverage), 20 AWG stranded tinned coppboil® shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.

8760

Multi-Conductor - Shielded Twisted Pair Cable
18 AWG

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
8760 060U1000	1,000 FT	28.000 LB	CHROME		2 #18 LDPE SH PVC
8760 060U500	500 FT	14.500 LB	CHROME		2 #18 LDPE SH PVC
8760 0601000	1,000 FT	26.000 LB	CHROME		2 #18 LDPE SH PVC
8760 06010000	10,000 FT	280.000 LB	CHROME	C Y	2 #18 LDPE SH PVC
8760 0602000	2,000 FT	56.000 LB	CHROME	C	2 #18 LDPE SH PVC
8760 060250	250 FT	7.250 LB	CHROME		2 #18 LDPE SH PVC
8760 060500	500 FT	14.500 LB	CHROME	C	2 #18 LDPE SH PVC
8760 0605000	5,000 FT	150.000 LB	CHROME	C	2 #18 LDPE SH PVC
8760 0609999	1,000 FT	26.000 LB	CHROME		2 #18 LDPE SH PVC

Notes:
C = CRATE REEL PUT-UP. Y = FINAL PUT-UP LENGTH MAY VARY -10% TO +20% FROM LENGTH SHOWN.MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500.

Physical Characteristics (Overall)

Conductor

AWG:

# Pairs	AWG	Stranding	Conductor Material
1	18	16x30	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
PE - Polyethylene	.019

Outer Shield

Outer Shield Material:

Outer Shield Trade Name	Type	Outer Shield Material	Coverage (%)
Beldfoil®	Tape	Aluminum Foil-Polyester Tape w/Shorting Fold	100

Outer Shield Drain Wire AWG:

AWG	Stranding	Drain Wire Conductor Material
20	7x28	TC - Tinned Copper

Outer Jacket

Outer Jacket Material:

Outer Jacket Material	Nom. Wall Thickness (in.)
PVC - Polyvinyl Chloride	.028

Overall Cabling

Overall Nominal Diameter:

0.222 in.

Pair

Pair Color Code Chart:

Number	Color
1	Black & Clear

Pair Lay Length & Direction:

Lay Length (in.)	Twists/ft. (twist/ft)
2.500	4.800

Mechanical Characteristics (Overall)

Operating Temperature Range:

-20°C To +60°C

UL Temperature Rating:

60°C (UL AWM Style 2092)

Bulk Cable Weight:

23 lbs/1000 ft.

Max. Recommended Pulling Tension:

62 lbs.

Min. Bend Radius (Install)/Minor Axis:

2.250 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

NEC/(UL) Specification:

CEC/C(UL) Specification:

AWM Specification:

UL Style 2092 (300 V 60°C)

EU CE Mark:

Yes

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Flame Test

UL Flame Test:

UL1685 UL Loading

Plenum/Non-Plenum

Plenum (Y/N):

Plenum Number:

88760, 87760 or 82760

Electrical Characteristics (Overall)

Nom. Characteristic Impedance:

Impedance (Ohm)

Nom. Inductance:

Inductance (µH/ft)

.18

Nom. Capacitance Conductor to Conductor:

Capacitance (pF/ft)

29.8

Nom. Capacitance Cond. to Other Conductor & Shield:

Capacitance (pF/ft)

Nom. Conductor DC Resistance:

DCR @ 20°C (Ohm/1000 ft)

6.5

Max. Operating Voltage - UL:

Voltage

300 V RMS (UL AWM Style 2092)

Max. Recommended Current:

Current

5.2 Amps per conductor @ 25°C
