Belden 34916 Hook-up/Lead - Awg 16(26x30) UL AWM Style 3190, cl1052, 300V, 105°C Hypalon®海巴龍電子線

454160

商品編號: Belden-34916

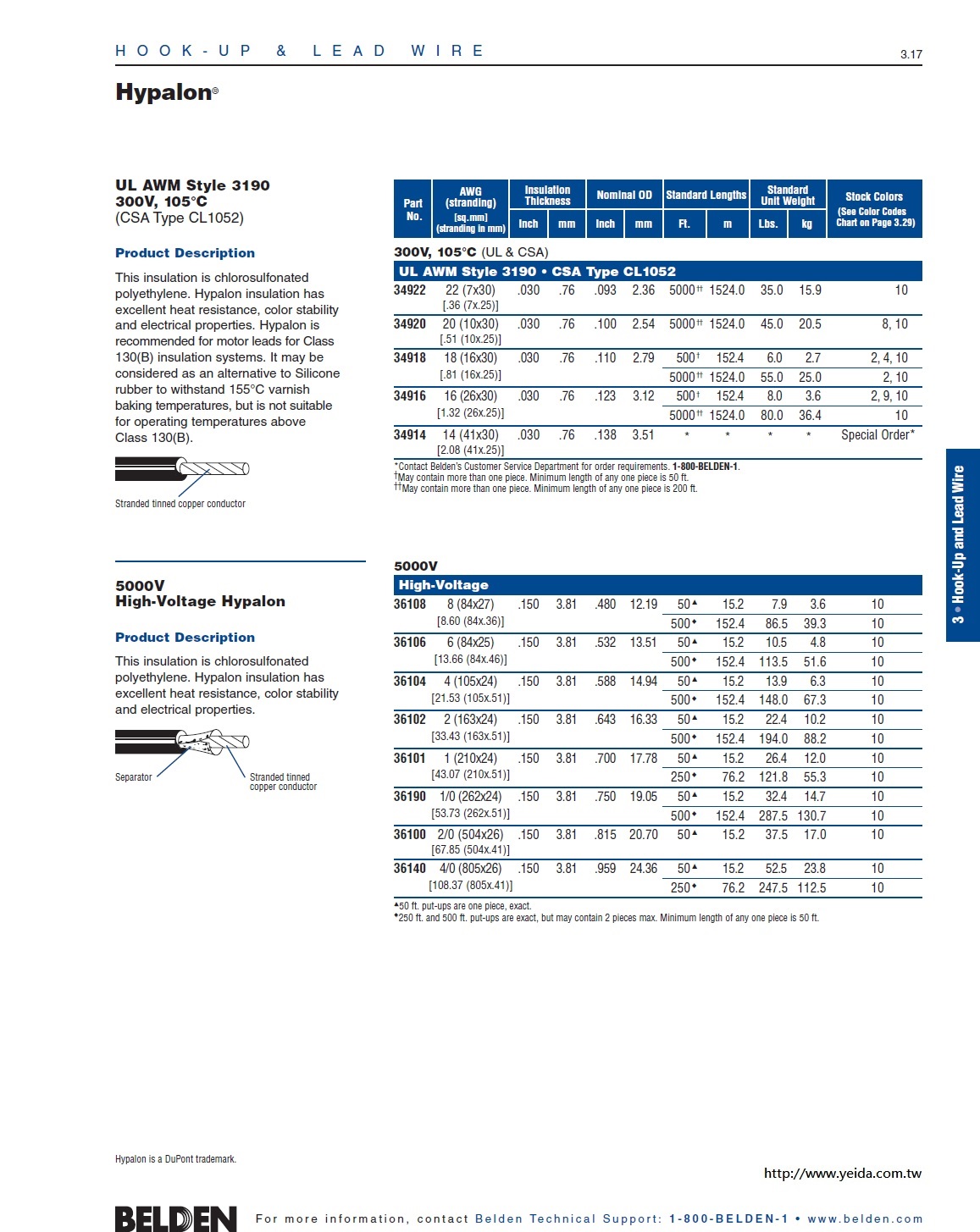

Belden-34916 Hook-up/Lead - Awg 16(26x30) UL AWM Style 3190, CL1052, 300V, 105°C Hypalon®海巴龍電子線

Hypalon® insulation has excellent heat resistance, color stability and electrical properties. Hypalon is recommended for motor leads for Class 130(B) insulation systems.

34916

Hook-up/Lead - UL AWM Style 3190
Hypalon® insulation has excellent heat resistance, color stability and electrical properties. Hypalon is recommended for motor leads for Class 130(B) insulation systems.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
34916 002500	500 FT	8.000 LB	RED	F	#16 STR CSM 105C 300V
34916 010500	500 FT	8.000 LB	BLACK	F	#16 STR CSM 105C 300V

Notes:
F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	16	26x30	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Trade Name	Insulation Material	Wall Thickness (in.)
Hypalon®	Chlorosulphonated Polyethylene	.030

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.123 in.

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL AWM Style:

3190

UL Rating:

300 V RMS, 105°C

CSA Rating:

300 V RMS, 105°C

CSA Type:

CL1052

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Plenum/Non-Plenum

Plenum (Y/N):

Notes (Overall)

Notes:

Hypalon - Trademark of DuPont
