    Belden83002 Hook-up/Lead - Awg 26 UL AWM Style 1213 (Type E) MIL-W-16878/4 Teflon — 600V, 200°C 軍規耐高溫鐵氟龍電子線

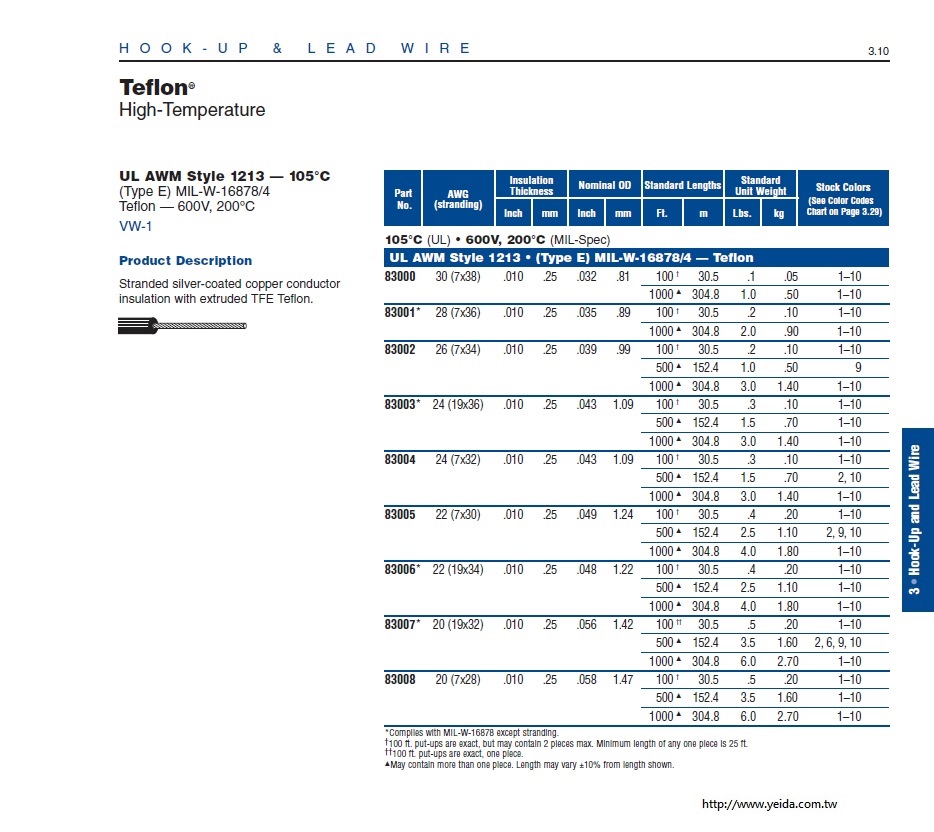

    看原圖
    		455130

    商品編號: Belden83002

    Belden-83002 Hook-up/Lead - Awg 26 UL AWM Style 1213 (Type E) MIL-W-16878/4 Teflon — 600V, 200°C 軍規耐高溫鐵氟龍電子線


    Teflon® HighTemperature UL AWM Style 1213 — 105°C
    (Type E) MIL-W-16878/4
    Teflon — 600V, 200°C
    VW-1
    　

    Product Description
    Stranded silver-coated copper conductor
    insulation with extruded TFE Teflon.

    83002    Hook-up/Lead - UL AWM Style 1213
    Stranded silver-coated copper conductor insulation with extruded TFE Teflon.    		 For more Information
    please call

    1-800-Belden1

    Put Ups and Colors:
    Item # Putup Ship Weight Color Notes Item Desc
    83002 001100 100 FT 0.200 LB BROWN E #26 STR TFE BRN
    83002 0011000 1,000 FT 3.000 LB BROWN E S #26 7/34 STR TFE BRN
    83002 002100 100 FT 0.200 LB RED E #26 STR TFE RED
    83002 0021000 1,000 FT 3.000 LB RED 　 #26 7/34 STR TFE RED
    83002 003100 100 FT 0.200 LB ORANGE E #26 STR TFE ORG
    83002 0031000 1,000 FT 3.000 LB ORANGE E S #26 7/34 STR TFE ORG
    83002 004100 100 FT 0.200 LB YELLOW E #26 STR TFE YEL
    83002 0041000 1,000 FT 3.000 LB YELLOW E S #26 7/34 STR TFE YEL
    83002 005100 100 FT 0.200 LB GREEN, DARK E #26 STR TFE GRNDK
    83002 0051000 1,000 FT 3.000 LB GREEN, DARK E S #26 7/34 STR TFE GRNDK
    83002 006100 100 FT 0.200 LB BLUE, LIGHT E #26 STR TFE BLULT
    83002 0061000 1,000 FT 3.000 LB BLUE, LIGHT E S #26 7/34 STR TFE BLULT
    83002 007100 100 FT 0.200 LB VIOLET E #26 STR TFE VIO
    83002 0071000 1,000 FT 3.000 LB VIOLET E #26 7/34 STR TFE VIO
    83002 008100 100 FT 0.200 LB GRAY E #26 STR TFE GRY
    83002 0081000 1,000 FT 3.000 LB GRAY E S #26 7/34 STR TFE GRY
    83002 009100 100 FT 0.200 LB WHITE E #26 STR TFE WHT
    83002 0091000 1,000 FT 3.000 LB WHITE 　 #26 7/34 STR TFE WHT
    83002 010100 100 FT 0.200 LB BLACK E #26 STR TFE BLK
    83002 0101000 1,000 FT 3.000 LB BLACK E #26 7/34 STR TFE BLK
    Notes: 　
    E = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'
    S = STRIPING ADDERS FOR TYPES E AND EE: 123 STRIPES. MINIMUM ORDER10
    　
    Physical Characteristics (Overall)
    Conductor
    AWG:
    # Conductors AWG Stranding Conductor Material
    1 26 7x34 SPC - Silver Plated Copper
    Insulation
    Insulation Material:
    Insulation Material Wall Thickness (in.)
    TFE - Tetrafluoroethylene .010
    Overall Insulation
    Overall Cabling
    Overall Nominal Diameter: 0.039 in.
    Applicable Specifications and Agency Compliance (Overall)
    Applicable Standards & Environmental Programs
    UL AWM Style: 1213
    UL Rating: 105°C
    EU CE Mark: Yes
    EU Directive 2000/53/EC (ELV): Yes
    EU Directive 2002/95/EC (RoHS): Yes
    EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
    EU Directive 2002/96/EC (WEEE): Yes
    EU Directive 2003/11/EC (BFR): Yes
    CA Prop 65 (CJ for Wire & Cable): Yes
    MII Order #39 (China RoHS): Yes
    Military Specification: MIL-W-16878/4
    MIL Spec Rating: 600 V, 200°C
    Flame Test
    UL Flame Test: VW-1
    Plenum/Non-Plenum
    Plenum (Y/N): No
