Belden31506 Hook-up/Lead - Awg 6 UL AWM Style 3048 600V, 90°C 鳥波林電子線

455492

商品編號: Belden-31506

Belden31506 Hook-up/Lead - Awg 6 UL AWM Style 3048 600V, 90°C 鳥波林電子線

31506

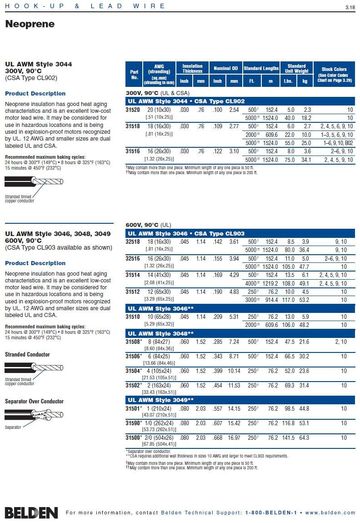

Hook-up/Lead - UL AWM Style 3048
Neoprene insulation has good heat aging characteristics and is an excellent low-cost motor lead wire. It may be considered for use in hazardous locations and is being used in explosion-proof motors recognized by UL.

For more Information
please call

1-800-Belden1

Put Ups and Colors:

Item #	Putup	Ship Weight	Color	Notes	Item Desc
31506 010500	500 FT	66.500 LB	BLACK	C F	#6 STR CR 90C 600V

Notes:
C = CRATE REEL PUT-UP. F = MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50'

Physical Characteristics (Overall)

Conductor

AWG:

# Conductors	AWG	Stranding	Conductor Material
1	6	84x25	TC - Tinned Copper

Insulation

Insulation Material:

Insulation Material	Wall Thickness (in.)
Neoprene	.060

Separator

Separator Material over Conductor:

Overall Insulation

Overall Cabling

Overall Nominal Diameter:

0.343 in.

Mechanical Characteristics (Overall)

Non-UL Temperature Rating:

90°C

Recommended Maximum Baking Cycles:

24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C)

Applicable Specifications and Agency Compliance (Overall)

Applicable Standards & Environmental Programs

UL AWM Style:

3048

UL Rating:

600 V, 90°C

EU Directive 2000/53/EC (ELV):

Yes

EU Directive 2002/95/EC (RoHS):

Yes

EU RoHS Compliance Date (mm/dd/yyyy):

01/01/2004

EU Directive 2002/96/EC (WEEE):

Yes

EU Directive 2003/11/EC (BFR):

Yes

CA Prop 65 (CJ for Wire & Cable):

Yes

MII Order #39 (China RoHS):

Yes

Plenum/Non-Plenum

Plenum (Y/N):
